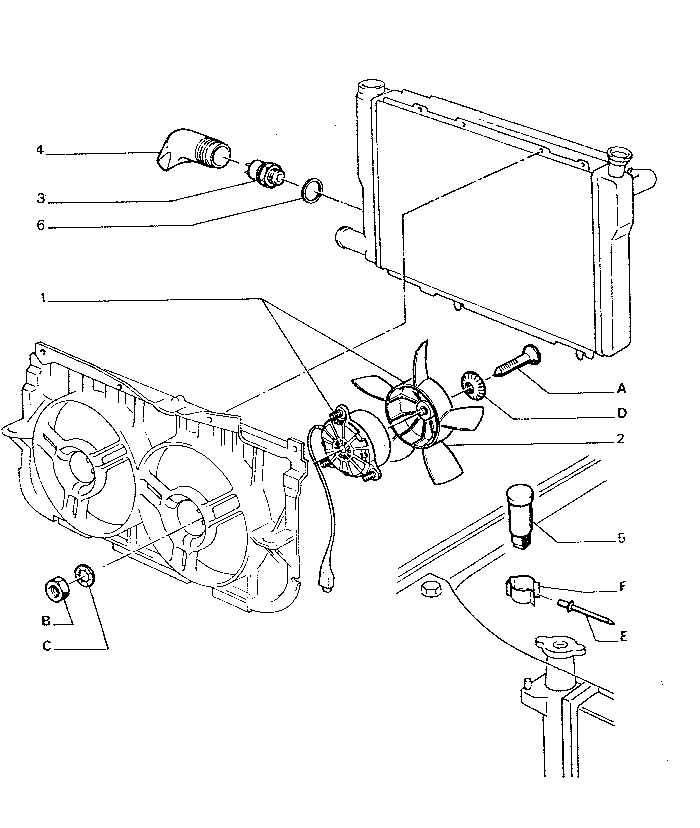

| GB | 205F 1 12C80A | FAN |
| 01 | 1253 05 | 02 |
MOTOR-DRIVN FAN 230W A O P 699P UP TO S 7071502 |
 | |||
| 1253 09 | 02 |
230W
A O P 699P GATES MP8015 SINCE S 7071503 |
|
| | |||
| 02 | 1254 41 | 02 |
MOTOR DRIV FAN 5 PALES A O P - |
| | |||
| 1254 43 | 02 |
6 PALES
GATE - |
|
| | |||
| 03 | 1264 16 | 01 |
TEMPERAT SWITCH 84/79-88/83 DEG UP TO 05/1987 |
| | |||
| 1264 18 | 01 |
93/88 - 97/92 DEG UP TO 03/1990 |
|
| | |||
| 1264 22 | 01 |
97/92 -101/96 DEG SINCE 05/1987 UP TO 03/1990 |
|
| | |||
| 1264 44 | 01 |
97,5/92,5-92,5/87,5 ELBI V E B E - EXCEPT AIR CONDITIONING SINCE 03/1990 |
|
| | |||
| 1264 25 | 01 | 97/92-101/96 DEG | |
| RP 1264 45 | 01 |
VERNET BE BLUE - AIR CONDITIONING SINCE 03/1990 |
|
| | |||
| 04 | 1265 04 | 01 | CAP DIAM 23 |
| | |||
| 05 | 1267 12 | 01 |
ADDIT RESISTOR O
- EXCEPT AIR CONDITIONING |
| | |||
| 06 | 0243 18 | 01 |
SEAL 22,4X30-2
A005 WITHOUT ASBESTOS |
| | |||
| 07 | 1250 97 | 02 | STOP-RING 18,6X6-3 |
| | |||
| 9A | 6905 11 | 01 | METAL SCREW 4X70-12 |
| | |||
| 9B | 6936 26 | 01 | HEXAGONAL NUT 6X100-5 |
| | |||
| 9C | 6957 16 | 01 |
SPRING WASHER 6X14,2-0,7 |
| | |||
| 9D | 6959 54 | 01 | 4X8,2-0,25 |
| | |||
| 9E | 6973 05 | 01 |
RIVET 4,8 X 9,2
A006 ALUMINIUM |
| | |||
| 9F | 6991 10 | 01 | CLIP 14-16 --6,5 |
