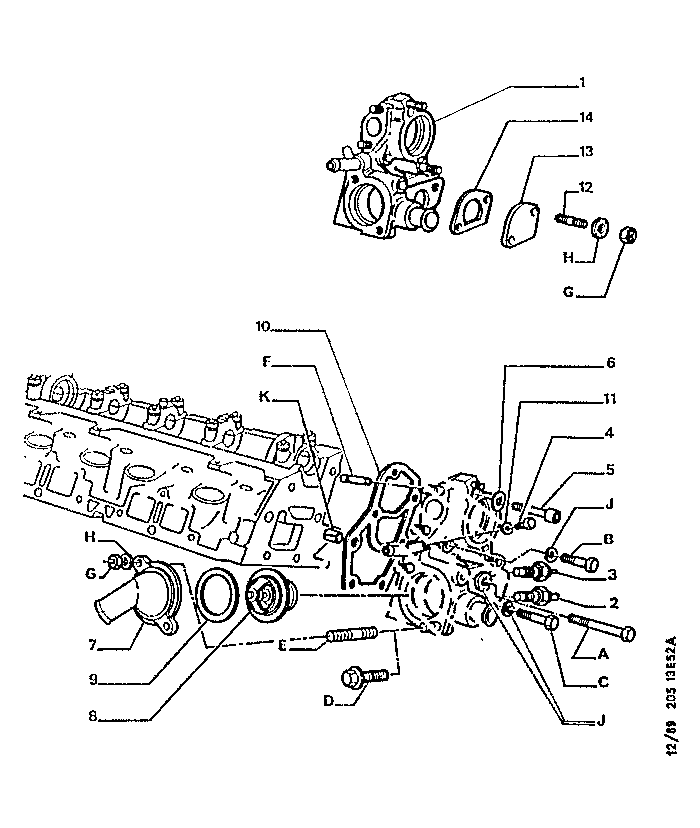

| GB | 205F 1 13E52A | RADIATOR WATER HOSE WATER TANK |
| 01 | 1337 98 | 01 | OUTLET TANK |
 | |||
| 02 | 0242 43 | 01 |
TEMPERAT SWITCH 105 DEG-DIAM 14X1,25 |
| | |||
| 0242 49 | 01 | 110ø-14X1,25 | |
| | |||
| 03 | 1337 72 | 01 |
TEMPERATURE DIAM 14X1,25
RG RED |
| | |||
| 04 | 1306 29 | 01 | DRAIN SCREW |
| | |||
| 05 | 1336 33 | 01 | SOCKET SCREW 7X100-55 |
| | |||
| 06 | 1339 64 | 01 | HOUSING SEAL |
| | |||
| 07 | 1337 84 | 01 | WATER OUTLET |
| | |||
| 08 | 1338 37 | 01 |
THERMOSTAT 82 DEG (83 DEG) DAUPHIN THOMSON VERNET VERNET V1725C - EXCEPT (GE) |
| | |||
| 1338 83 | 01 |
82 DEG (83 DEG) DAUPHIN THOMSON VERNET VERNET V1725C - (GE) |
|
| | |||
| 1338 44 | 01 |
89 DEG
DAUPHIN THOMSON VERNET V1906 |
|
| | |||
| 09 | 1339 10 | 02 | THERMOST GASKET |
| | |||
| 10 | 1339 41 | 01 |
HOUSING SEAL
A003 WITH ASBESTOS |
| | |||
| 1340 08 | 01 |
A005 WITHOUT ASBESTOS |
|
| | |||
| 11 | 8249 18 | 01 | SEAL WASHER DIAM 6 |
| | |||
| 12 | 4602 05 | 02 | STUD 8X125-19-15-15 |
| | |||
| 13 | 0145 23 | 01 | LOCKING PLATE |
| | |||
| 14 | 0147 12 | 01 | PLATE GASKET |
| | |||
| 9A | 6921 15 | 01 |
CAPSCREW 7X100-75 |
| | |||
| 9B | 6921 28 | 01 |
7X100-40 |
| | |||
| 9C | 6921 31 | 01 | 7X100-55 |
| | |||
| 9D | 6922 22 | 01 | SELF-TAP SCREWS 8X125-20 |
| | |||
| 9E | 6929 70 | 01 |
STUD 8X125-20-17-14 |
| | |||
| 9F | 6929 76 | 01 | 8X125-25-22-14 |
| | |||
| 9G | 6932 38 | 01 | HEXAGONAL NUT 8X125-6,5 |
| | |||
| 9H | 6962 13 | 01 |
FLEXIBLE WASHER 8X17-0,8 |
| | |||
| 9J | 6962 12 | 01 | 7X13,7-0,8 |
| | |||
| 9K | 6968 40 | 01 | PIN 10X13 |
