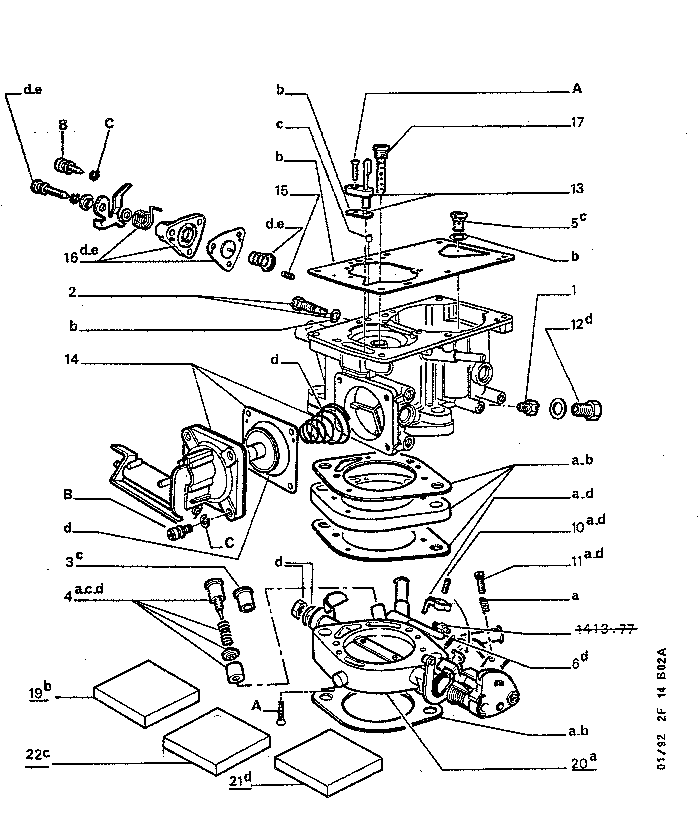

| GB | 205F 1 14B02A | CARBURETTOR SINGLE BARREL DETAIL |
CARBURETTOR XV8
| 01 | 1405 33 NFP |
01 |
MAIN JET
UP TO MOD 1985 |
 | |||
| 1405 23 | 01 |
122,5
SINCE MOD 1985 |
|
| | |||
| 02 | 1410 40 | 01 | PILOT JET 46 |
| | |||
| 03 | 1409 43 | 01 | SCREW PLUG |
| | |||
| 04 | 1409 56 | 01 | MIXTURE SCREW |
| | |||
| 05 | 1409 A9 | 01 | BALL SOCKET |
| | |||
| 06 | 1410 65 | 01 | CONTACT SPRING |
| | |||
| 10 | 1411 78 NFP |
01 | STOP SCREW |
| | |||
| 11 | 1426 52 NFP |
01 | |
| | |||
| 12 | 1412 09 PE |
01 | FLOAT CHMB PLUG |
| | |||
| 13 | 1411 83 | 01 | PUMP INJECTOR |
| | |||
| 14 | 1433 26 | 01 | ACCELERAT PUMP |
| | |||
| 15 | 1410 A1 | 01 | ENRICHER GAUGE |
| | |||
| 16 | 1433 27 | 01 | ENRICHENER ASSY |
| | |||
| 17 | 1433 66 NFP |
01 | CORRECTION JET |
| | |||
| 19 | 1417 N6 | 01 | CARB GASKET KIT |
| | |||
| 20 | 1411 C5 | 01 | CARBURETTR BODY |
| | |||
| 21 | 1417 N7 | 01 |
CARB REPAIR KIT
SOLEX 32 PBISA |
| | |||
| 22 | 1417 11 LE-9505 |
01 |
WEBER |
| | |||
| 9A | 6908 59 | 01 | METAL SCREW 4X70-25 |
| | |||
| 9B | 6910 16 | 01 | CAPSCREW 4X70-16 |
| | |||
| 9C | 6950 21 | 01 | SPRING WASHER 4,3X7,3-1,5 |
