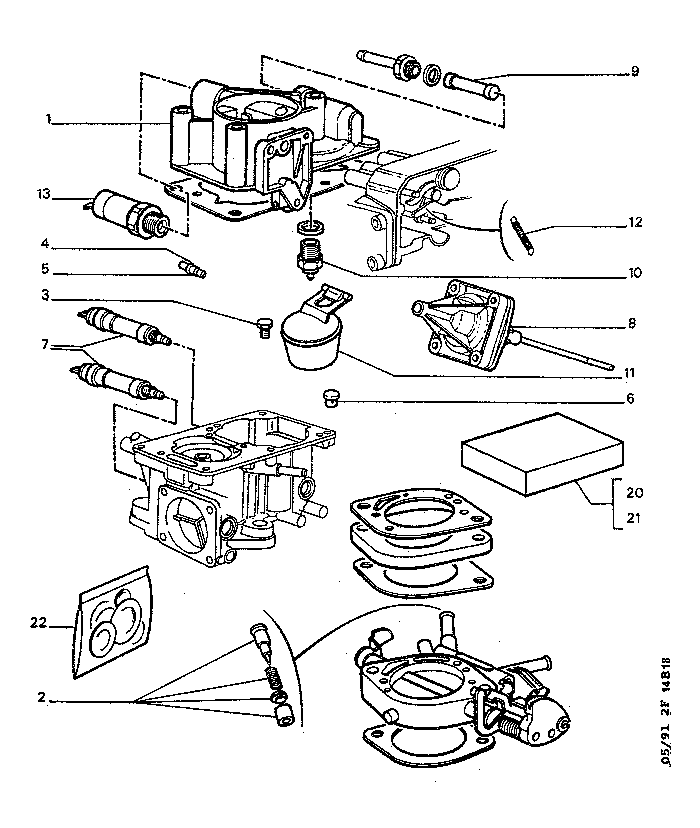

| GB | 205F 1 14B18A | CARBURETTOR SINGLE BARREL DETAIL |
CARBURETTOR XY7CP (CH) (A)
| 01 | 1402 F2 LE-9204 |
01 |
FLOAT CHB COVER
SOLEX |
 | |||
| 02 | 1409 56 | 01 | MIXTURE SCREW |
| | |||
| 03 | 1405 33 NFP |
01 | MAIN JET |
| | |||
| 04 | 1410 A9 | 01 | SOCKET TOOL 46 - 50 |
| | |||
| 05 | 1405 E8 | 01 | MAIN JET |
| | |||
| 06 | 1409 A9 | 01 | BALL SOCKET |
| | |||
| 07 | 1405 H2 | 02 |
CARB ACT ASSY
SOLEX |
| | |||
| 08 | 1408 C9 | 01 |
OPENING DEV ASY
SOLEX |
| | |||
| 09 | 1403 B4 | 01 | PETROL FILTER |
| | |||
| 10 | 1411 87 | 01 | CARB NEEDL VALV |
| | |||
| 11 | 1408 05 | 01 | CARBURETR FLOAT |
| | |||
| 12 | 1407 A2 | 01 | SPRING |
| | |||
| 13 | 1403 E8 | 01 |
ELECTRO-VALVE
SOLEX |
| | |||
| 20 | 1417 G5 | 01 |
CARB REPAIR KIT REPAR |
| RP 1417 M7 | 01 | ||
| | |||
| 21 | 1417 G6 | 01 | REPAR |
| RP 1417 M7 | 01 |
SOLEX |
|
| | |||
| 22 | 1417 M6 | 01 | CARB GASKET KIT |
