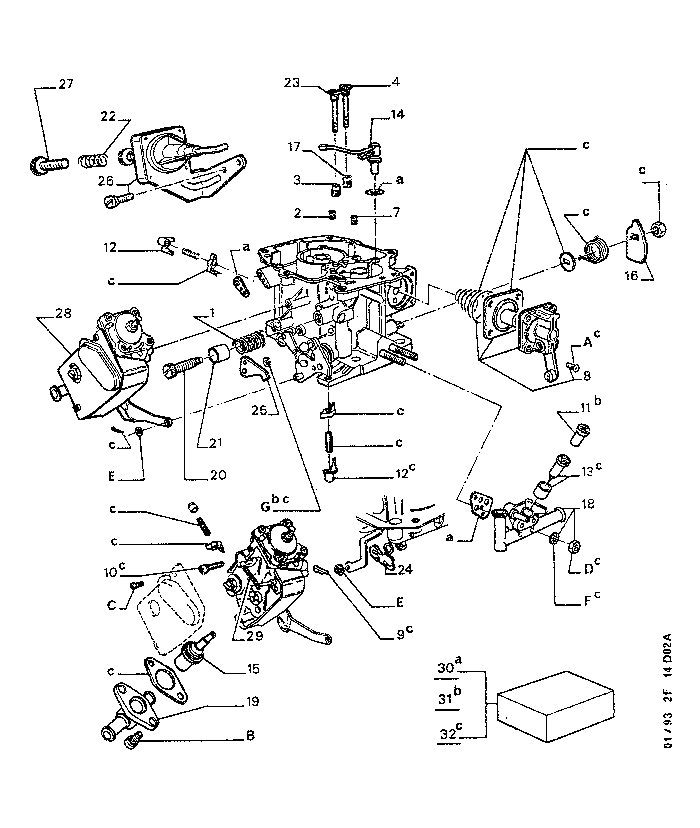

| GB | 205F 1 14D02A | CARBURATTOR DUAL BARREL DETAIL |
CARBURETTOR XY6B (S) (CH)
| 01 | 1402 91 | 01 | SCREW SPRING |
 | |||
| 02 | 1403 62 NFP |
01 | CO JET 30 |
| | |||
| 03 | 1405 08 LE-9204 |
01 | MAIN JET |
| | |||
| 04 | 1405 10 LE-9204 |
01 | CORRECTION JET |
| | |||
| 07 | 1405 64 NFP |
01 | ECONOMETER |
| | |||
| 08 | 1406 02 | 01 | ACCELERAT PUMP |
| | |||
| 09 | 1408 71 NFP |
01 | PIN |
| | |||
| 10 | 1408 83 NFP |
03 | CAPSCREW 5X0,80-22 |
| | |||
| 11 | 1409 43 | 01 | SCREW PLUG |
| | |||
| 12 | 1409 44 NFP |
02 | STOP SCREW CAP |
| | |||
| 13 | 1409 56 | 01 | MIXTURE SCREW |
| | |||
| 14 | 1410 19 NFP |
01 | PUMP INJECTOR |
| | |||
| 15 | 1407 C0 | 01 |
VACUUM UNIT
SOLEX |
| | |||
| 16 | 1411 44 NFP |
01 | PUMP CAM |
| | |||
| 17 | 1411 73 | 01 | MAIN JET |
| | |||
| 18 | 1412 92 NFP |
01 | REHEATING UNIT |
| | |||
| 19 | 1412 94 NFP |
01 | CHOKE CONT UNIT |
| | |||
| 20 | 1414 13 | 01 | AIR IDLE SCREW |
| | |||
| 21 | 1416 95 NFP |
01 | CARBURETTOR CUP |
| | |||
| 22 | 1627 04 NFP |
01 | SCREW SPRING |
| | |||
| 23 | 1433 12 LE-9204 |
01 | CORRECTION JET |
| | |||
| 24 | 1433 13 NFP |
01 | CONTROL LEVER |
| | |||
| 25 | 1433 14 NFP |
01 | CARB ROCKR LEVR |
| | |||
| 26 | 1433 15 NFP |
01 | THROTTL.OPENING |
| | |||
| 27 | 1627 03 NFP |
01 | CARB IDLE SCREW |
| | |||
| 28 | 1433 17 NFP |
01 | STARTING DEVICE |
| | |||
| 29 | 1410 65 | 01 | CONTACT SPRING |
| | |||
| 30 | 1417 N0 | 01 | CARB GASKET KIT |
| | |||
| 31 | 1417 87 NFP |
01 |
CARB REPAIR KIT REPAR |
| | |||
| 32 | 1417 88 NFP |
01 | |
| | |||
| 9A | 6908 59 | 01 | METAL SCREW 4X70-25 |
| | |||
| 9B | 6912 79 | 01 |
SCREW RLX 5X80-16 |
| | |||
| 9C | 6911 22 | 01 | 4X70-8 |
| | |||
| 9D | 6933 22 | 01 | HEXAGONAL NUT 5X80 |
| | |||
| 9E | 6946 02 | 01 | PLAIN WASHER 4X8-1 |
| | |||
| 9F | 6957 40 | 01 | SPRING WASHER 5X12,2-0,8 |
| | |||
| 9G | 6979 70 | 01 | STOP-RING 4X2,89-0,6 |
