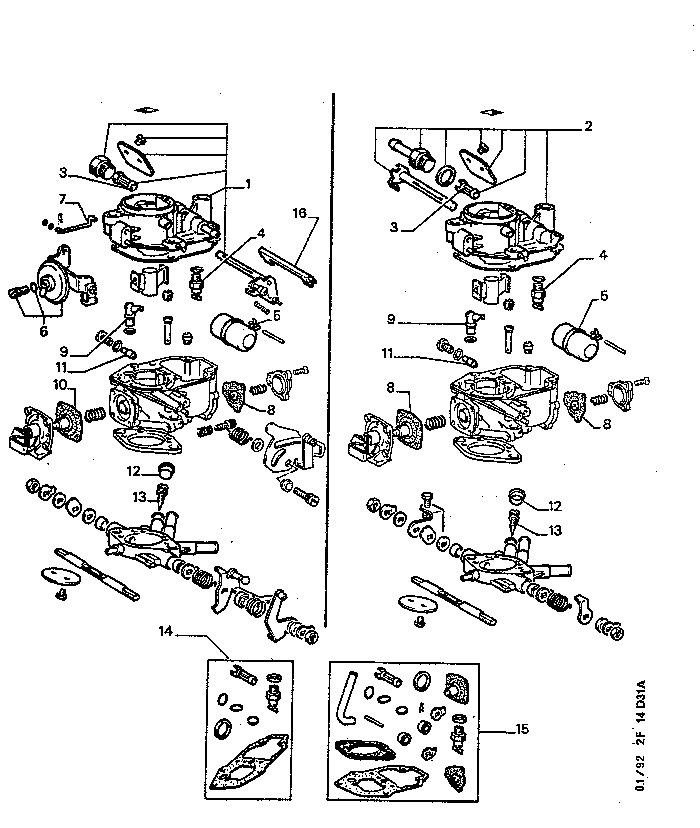

| GB | 205F 1 14D31A | CARBURATTOR DUAL BARREL DETAIL |
CARBURETTOR XY8
| 01 | 1402 E8 NFP |
01 |
FLOAT CHB COVER
WEBER WEBER- 35 IBSH20 REP 100 |
 | |||
| 02 | 1402 E9 NFP |
01 |
WEBER- 35 IBSH21 REP 100 |
| | |||
| 03 | 1403 C4 | 01 | PETROL FILTER |
| | |||
| 04 | 1405 20 | 01 | CARB NEEDL VALV |
| | |||
| 05 | 1403 C1 | 01 | CARBURETR FLOAT |
| | |||
| 06 | 1408 C2 | 01 |
IMPOVERISH UNIT
WEBER |
| | |||
| 07 | 1408 C5 NFP |
01 |
CARB OPEN LINK
WEBER |
| | |||
| 08 | 1410 A8 | 01 | CARB DIAPHRAGM |
| | |||
| 09 | 1409 C5 | 01 | PUMP INJECTOR |
| | |||
| 10 | 1409 A8 | 01 |
CARB DIAPHRAGM
WEBER |
| | |||
| 11 | 1411 59 NFP |
01 | PILOT JET |
| | |||
| 12 | 1411 65 NFP |
01 | SCREW PLUG |
| | |||
| 13 | 1412 A9 | 01 | MIXTURE SCREW |
| | |||
| 14 | 1417 C8 | 01 | CARB REPAIR KIT |
| | |||
| 15 | 1417 G0 | 01 |
WEBER |
| | |||
| 16 | 1403 E2 | 01 |
CARBU LINK
WEBER |
