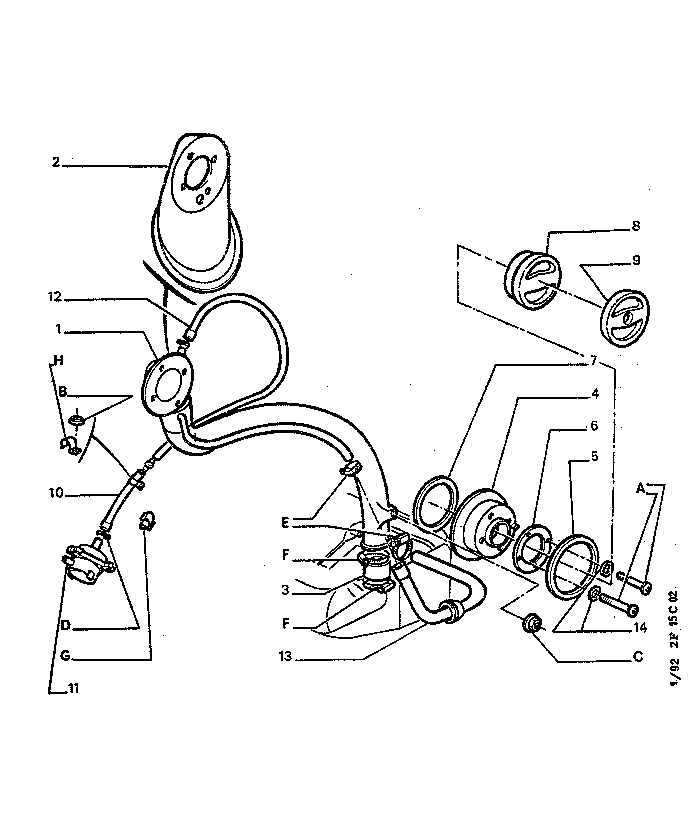

| GB | 205F 1 15C02A | TANK FILLING HOSE |
UP TO S 5042337
|
A) SEE SERVICE Nø 17 |
|||
| 01 | 1504 89 | 01 | FILLER PIPE |
 | |||
| 02 | 1504 90 NFP |
01 | FUEL PIP GASKET |
| | |||
| 03 | 1505 84 | 01 | FILLER JOINT |
| | |||
| 04 | 1504 92 NFP |
01 | FILLER HOUSING |
| | |||
| 05 | 1504 93 | 01 | FUEL PIP GASKET |
| | |||
| 06 | 1504 98 | 01 | PLAIN WASHER |
| | |||
| 07 | 1504 99 NFP |
01 | FUEL PIP GASKET |
| | |||
| 08 | 1508 32 | 01 |
FILLER PLUG NON VENTILE NON LOCKING |
| | |||
| 1508 55 | 01 |
- SPECIFY CODE NUMBER ON ORDER |
|
| | |||
| 09 | 1508 35 | 01 | FUEL COVER CAP |
| | |||
| 10 | 1577 53 | 01 | VENTING PIPE L=700 CL |
| | |||
| 11 | 1502 27 | 01 | VENTING VALVE |
| | |||
| 12 | 1573 04 | 01 | VENTING PIPE CL |
| | |||
| 13 | 1577 44 | 01 | DEGASSING PIPE |
| | |||
| 14 | 7554 08 NFP |
04 | LICENSE BRACKET 4,3X9-0,8 |
| | |||
| 9A | 6993 34 | 01 | SCREW BAG 4,8-19 |
| | |||
| 9B | 6935 08 | 01 | NUT WITH BASE 6X100-5-12,2 |
| | |||
| 9C | 6935 74 | 01 | WASHER-NUT 6 X 100 - 6,9 - 10 |
| | |||
| 9D | 6981 36 | 01 |
METALLIC CLAMP 12 A 20 |
| | |||
| 9E | 6981 37 | 01 |
16 A 27 |
| | |||
| 9F | 6981 41 | 01 | 40 A 60 |
| | |||
| 9G | 6986 85 | 01 |
CLIP 15-18--2-4 |
| | |||
| 9H | 6991 07 | 01 | DIAM 13 |
