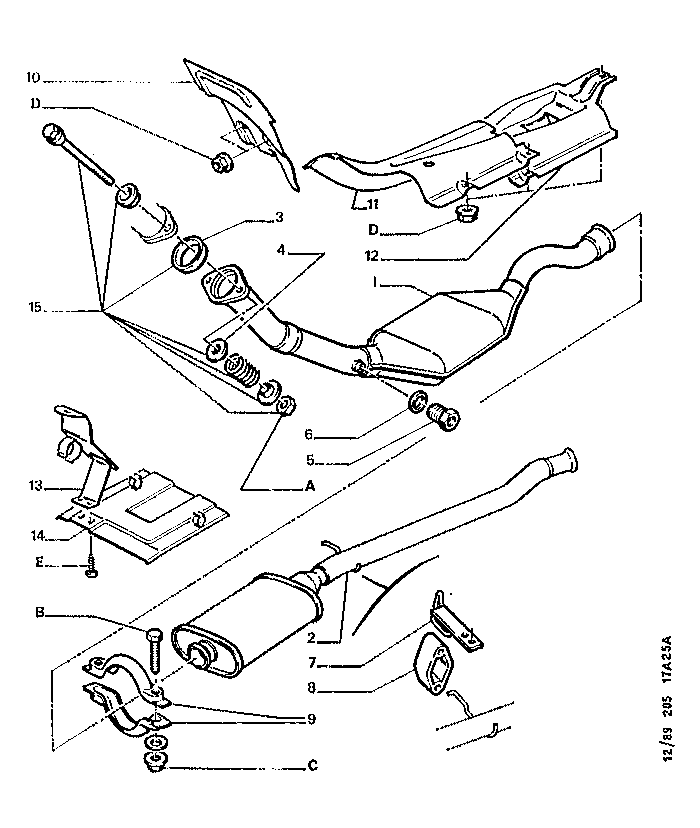

| GB | 205F 1 17A25A | EXHAUST FRONT PART |
| 01 | 1704 24 | 01 | PIPE |
 | |||
| 02 | 1728 47 | 01 | EXHAUST PIPE |
| | |||
| 03 | 1798 75 | 01 | FIXING KIT |
| | |||
| 04 | 1712 28 | 02 |
PIPE WASHER
A005 WITHOUT ASBESTOS |
| | |||
| 05 | 1714 86 | 01 | PLUG 18X1,50 |
| | |||
| 06 | 0313 02 | 01 |
SUMP GASKET 18,3 X 24 - 2
A003 WITH ASBESTOS |
| | |||
| 0313 26 | 01 |
PLUG SEAL 18,3X24-2
A005 WITHOUT ASBESTOS |
|
| | |||
| 07 | 1735 79 | 01 | SUPPORT HOOK |
| | |||
| 08 | 1755 40 | 01 | EXHAUST MOUNTG |
| | |||
| 09 | 1713 55 | 02 | HALF-CLAMP ASSY |
| | |||
| 10 | 1721 66 | 01 | HEAT SHIELD |
| | |||
| 11 | 1721 67 | 01 | |
| | |||
| 12 | 1721 68 | 01 | |
| | |||
| 13 | 1723 21 | 01 | |
| | |||
| 14 | 1721 69 | 01 | |
| | |||
| 15 | 1798 80 | 01 | FIXING KIT |
| | |||
| 9A | 6935 36 | 01 | HEXAGONAL NUT 12X100-4 |
| | |||
| 9B | 6922 88 | 01 | SELF-TAP SCREWS 8X125-40 |
| | |||
| 9C | 6936 38 | 01 |
NUT WITH BASE 8X125-8 |
| RP 6936 70 | 01 | ||
| | |||
| 9D | 6935 08 | 01 | 6X100-5-12,2 |
| | |||
| 9E | 6925 35 | 01 | SCREW RLX 4,2-9,5 |
