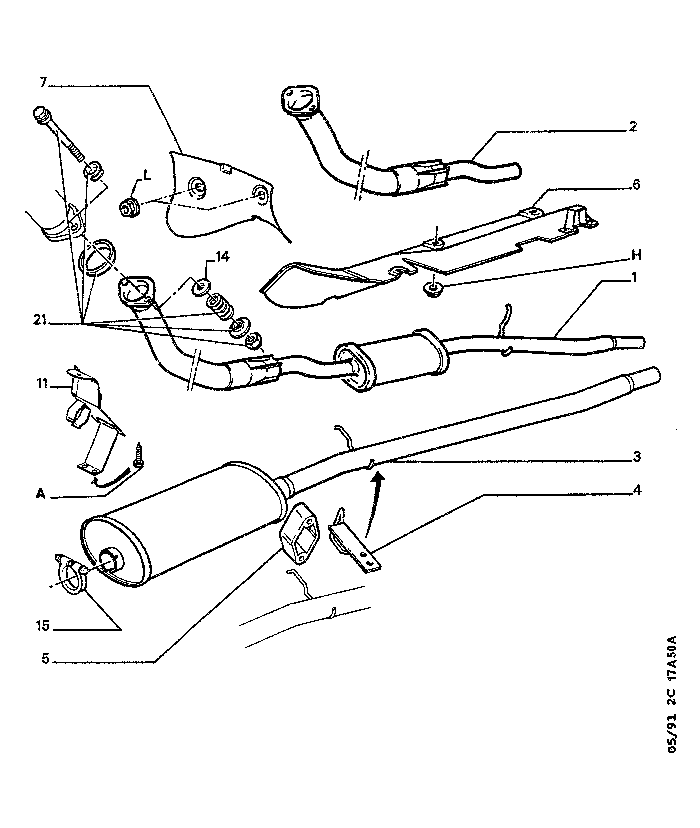

| GB | 205F 1 17A50A | EXHAUST FRONT PART |
|
A) UP TO 5 243 730 : + 1735 79 (1), 1755 40 (1) |
|||
| 01 | 1704 46 | 01 |
EXHAUST FT PIPE
UP TO MOD 1990 WITH INTERMEDIATE PIPE |
 | |||
| 1704 95 | 01 |
- INJECTION XU5J SINCE MOD 1990 - INJECTION XU5JA SINCE MOD 1990 - INJECTION XU9JA SINCE MOD 1990 |
|
| | |||
| 02 | 1703 44 | 01 |
WITHOUT INTERMEDIATE PIPE |
| | |||
| 03 | 1728 23 | 01 | EXHAUST PIPE |
| | |||
| 04 | 1735 79 | 01 | SUPPORT HOOK |
| | |||
| 05 | 1755 40 | 01 | EXHAUST MOUNTG |
| | |||
| 06 | 1732 10 | 01 | HEAT SHIELD |
| | |||
| 07 | 1721 35 | 01 |
- INJECTION XU5J LEFT HAND DRIVE - INJECTION XU5JA LEFT HAND DRIVE |
| | |||
| 1721 65 NFP |
01 |
- INJECTION XU5J RIGHT HAND DRIVE - INJECTION XU5JA RIGHT HAND DRIVE - INJECTION XU9JA LEFT HAND DRIVE |
|
| | |||
| 11 | 1723 21 | 01 | |
| | |||
| 14 | 1712 28 | 02 |
PIPE WASHER
A005 WITHOUT ASBESTOS |
| | |||
| 15 | 1713 31 | 01 | FIXING CLAMP DIAM 49 |
| | |||
| 21 | 1798 80 | 01 | FIXING KIT |
| | |||
| 9A | 6925 35 | 01 | SCREW RLX 4,2-9,5 |
| | |||
| 9H | 6935 74 | 01 | WASHER-NUT 6 X 100 - 6,9 - 10 |
| | |||
| 9L | 6935 86 | 01 | SELF LOCKG NUT 6X100-5,5-10 |
