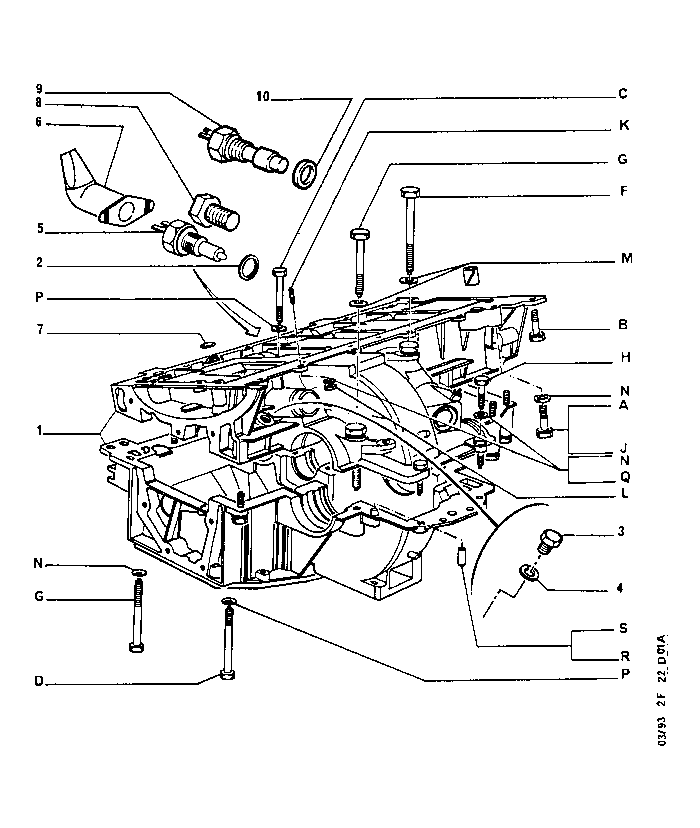

| GB | 205F 2 22D01A | MANUAL GEAR-BOX HOUSING |
| 01 | 2206 78 NFP |
01 |
GEAR-BOX HOUSG
- BH3/4 |
 | |||
| 2206 79 NFP |
01 |
- BH3/5 |
|
| | |||
| 02 | 6988 42 | 01 | PLUG SEAL 14,3X21-1 |
| | |||
| 03 | 0163 21 | 01 | CASING PLUG 16X150-12 |
| | |||
| 04 | 0164 02 | 01 |
PLUG SEAL 16,3 X 22 -2 A003 WITH ASBESTOS |
| | |||
| 0164 30 | 01 |
16X22-2
A005 WITHOUT ASBESTOS |
|
| | |||
| 05 | 2257 17 | 01 | CONTACT SWITCH 14X150 |
| | |||
| 06 | 2257 23 | 01 | SWITCH CAP |
| | |||
| 07 | 2541 20 | 01 | RING-SEAL 15 X 21 - 3 |
| | |||
| 08 | 2218 09 | 01 | DRAIN SCREW 14 X 150 |
| | |||
| 09 | 1131 36 | 01 |
OIL LEVEL PROBE
JAEGER |
| | |||
| 10 | 0313 02 | 01 |
SUMP GASKET 18,3 X 24 - 2
A003 WITH ASBESTOS |
| | |||
| 0313 26 | 01 |
PLUG SEAL 18,3X24-2
A005 WITHOUT ASBESTOS |
|
| | |||
| 9A | 6922 70 | 01 |
SELF-TAP SCREWS 7X100-35 |
| | |||
| 9B | 6915 26 | 01 | 7X100-25 |
| | |||
| 9C | 6921 42 | 01 |
CAPSCREW 8X125-55 |
| | |||
| 9D | 6922 15 | 01 |
8X125-75 |
| | |||
| 9F | 6922 17 | 01 |
10X150-90 |
| | |||
| 9G | 6921 15 | 01 |
7X100-75 |
| | |||
| 9H | 6921 74 | 01 | 7X100-30 |
| | |||
| 9J | 1011 12 | 01 | SELF-TAP SCREWS 7X100-85 |
| | |||
| 9K | 6930 22 | 01 | STUD 7X100-18-12-13 |
| | |||
| 9L | 6932 05 | 01 | HEXAGONAL NUT 7X100-5 |
| | |||
| 9M | 6962 11 | 01 |
FLEXIBLE WASHER 10X21,3-1 |
| | |||
| 9N | 6962 12 | 01 |
7X13,7-0,8 |
| | |||
| 9P | 6962 13 | 01 | 8X17-0,8 |
| | |||
| 9Q | 6966 14 | 01 |
PIN 8X23 |
| | |||
| 9R | 6968 51 | 01 |
8X12 |
| | |||
| 9S | 6968 52 | 01 | 8X17,5 |
