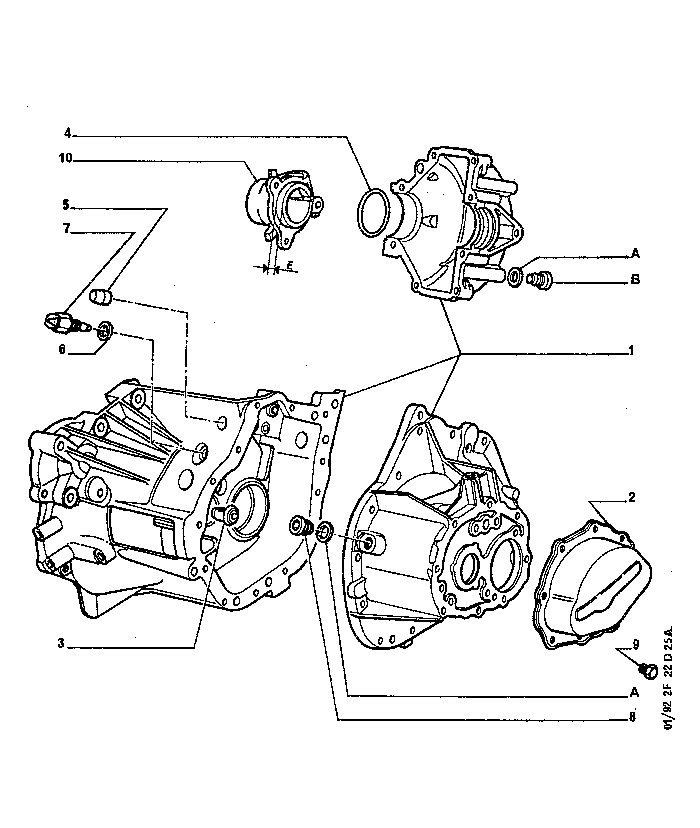

| GB | 205F 2 22D25A | MANUAL GEAR-BOX HOUSING |
|
A) + 2120 48 (1) B) + 2120 47 (1) C) TO SEE IS 4 MODELE YEAR 89 |
|||
| 01 | 2206 C1 | 01 |
HOUSING ASSY
S M A N 0000 - XU SINCE 10/1986 |
 | |||
| 2206 97 LE-8802 |
01 |
GEAR-BOX HOUSG
- EXCEPT XU UP TO 01/1988 |
|
| | |||
| 2206 A6 NFP |
01 |
HOUSING ASSY
- EXCEPT XU SINCE 01/1988 |
|
| | |||
| 02 | 2207 69 | 01 |
GEAR-BOX COVER
- BE1/4 |
| | |||
| 2207 94 | 01 |
- BE1/5 |
|
| | |||
| 03 | 2211 22 | 01 | OIL FITTING |
| RP 2211 46 | 01 | ||
| | |||
| 04 | 2212 07 | 01 | RING-SEAL 59X65-3 |
| RP 2212 23 | 01 | ||
| | |||
| 05 | 2218 07 | 01 | SHAFT PROTECTOR |
| | |||
| 06 | 6988 42 | 01 | PLUG SEAL 14,3X21-1 |
| | |||
| 07 | 2257 17 | 01 | CONTACT SWITCH 14X150 |
| | |||
| 08 | 2221 32 | 01 |
CASING PLUG 16X1,50
UP TO 10/1987 |
| | |||
| 09 | 2221 30 | 01 | FILLER CAP 14X100 |
| | |||
| 10 | 2228 03 | 01 |
EXTENSION E=8,65MM M7=25ø |
| | |||
| 2228 04 | 01 | E=10MM M7=25ø | |
| | |||
| 9A | 6988 01 | 01 | GRBX PLUG GASKT 16X24-2 |
| | |||
| 9B | 6988 02 | 01 | HANDLE BUTTON |
