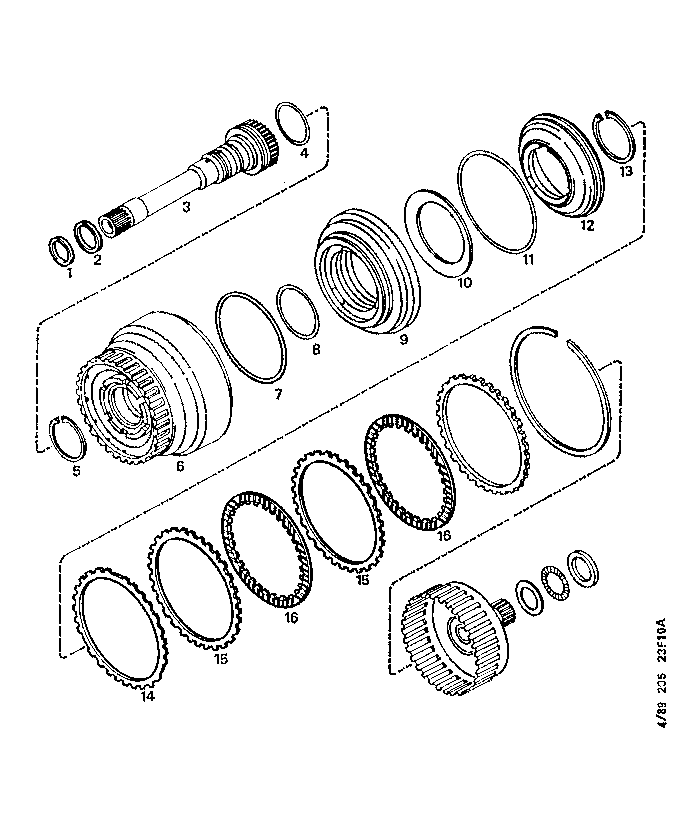

| GB | 205F 2 23F10A | AUTOMATIC GEARBOX INNENAL DETAIL |
| 01 | 2313 64 | 01 |
PISTON RING 28 X 26 - 2 |
 | |||
| 02 | 2313 65 | 01 | 29 X 27 - 2 |
| | |||
| 03 | 2301 96 | 01 | TURBINE SHAFT 29-58 DTS 16/26-174 |
| | |||
| 04 | 2312 29 | 01 | RING SEAL 41 X TORE 1,78 |
| | |||
| 05 | 2310 33 | 01 | STOP RING 51,5 X 46 - 1 |
| | |||
| 06 | 2301 98 | 01 | CYLINDER 58-30-24DTS48X146-71 |
| | |||
| 07 | 2312 22 | 01 |
RING SEAL 95 X TORE 2,65 |
| | |||
| 08 | 2312 26 | 01 | 60 X TORE 2,65 |
| | |||
| 09 | 2311 67 | 01 |
AUT GRBX PISTON
- CARBURETTOR |
| | |||
| 2311 69 | 01 |
- INJECTION |
|
| | |||
| 10 | 2313 76 | 01 | DIAPHRAGM |
| | |||
| 11 | 2312 30 | 01 | RING SEAL 101 TORE 2,65 |
| | |||
| 12 | 2307 46 | 01 | RETAINING DISC |
| | |||
| 13 | 2310 43 | 01 | STOP RING 52X60-1,12 |
| | |||
| 14 | 2307 39 | 01 | ELASTIC DISC 120,5X140,2-1 |
| | |||
| 15 | 2307 37 | 04 |
DISC EXTERNAL 120 X 140,2 - 1,8
- CARBURETTOR - INJECTION |
| | |||
| 16 | 2307 38 | 04 |
DISC LINING 121 X 135 - 1,57
- CARBURETTOR - INJECTION |
