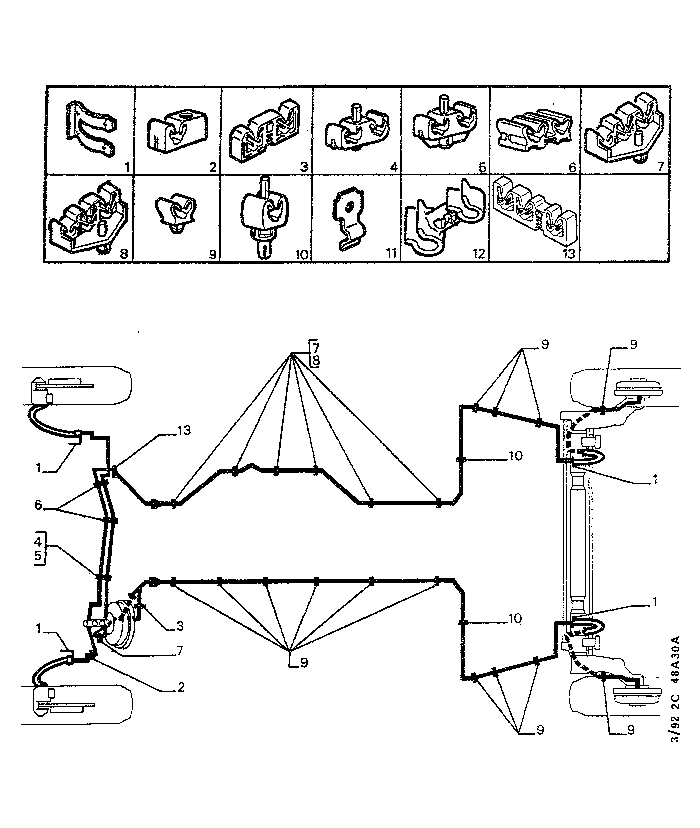

| GB | 205F 4 48A30A | STANDARD BRAKE PIPING |
| 01 | 4814 19 | 04 | MOUNTING CLAMP |
 | |||
| 02 | 6992 R2 | 01 | CLIP |
| RP 6994 69 + 6994 74 |
01 01 |
||
| | |||
| 03 | 1565 70 | 01 |
6-10--4,8-10 |
| | |||
| 04 | 4814 18 | 01 | DIAM 4,8-4,8 |
| | |||
| 05 | 4814 39 | 01 | SUPPORT CLIP DIAM 4,8 |
| | |||
| 06 | 4814 66 | 02 |
CLIP DIAM 4,75 |
| | |||
| 07 | 1565 61 | 07 | DIAM 4,5--6-10--6-10 |
| | |||
| 08 | 2287 07 | 06 | SUPPORT CLIP |
| | |||
| 09 | 6992 E8 | 14 | CLIP DIAM 4,8-6 |
| | |||
| 10 | 4814 40 | 01 | LINE BRACKET 1 DIAM 4 |
| | |||
| 11 | 1565 06 | 01 | FUEL PIPE CLAMP |
| | |||
| 12 | 4814 97 | 01 | SWIVEL CLIP 2T 4 |
| | |||
| 13 | 6997 20 | 01 | CLIP DIAM 4 8-8 L=59,5X10 |
