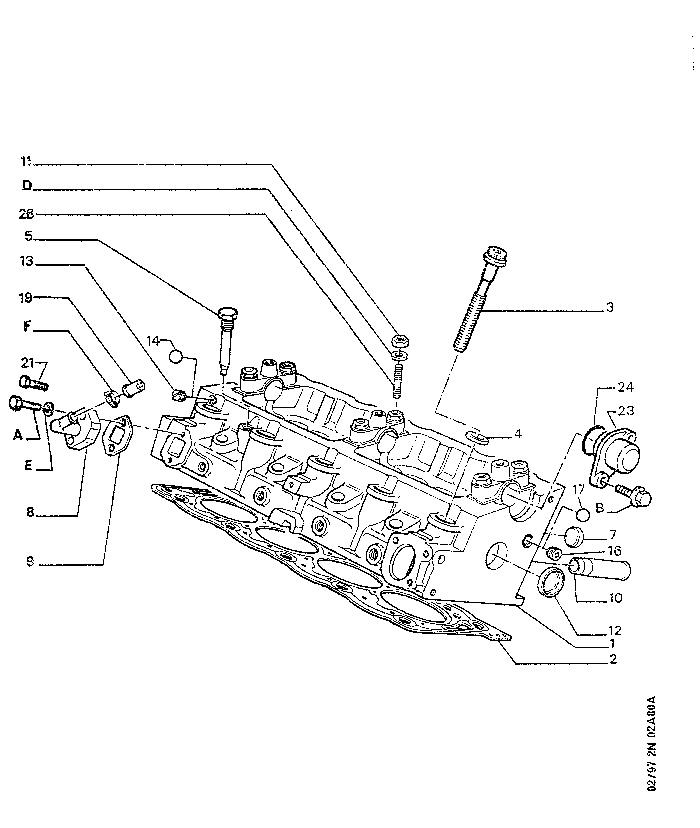

| GB | 205N 0 02A80A | CYLINDER-HEAD GUIDE AND VALVE SEAT |
|
A) SEE SERVICE INFO Nø153 DATED 11/95 B) PLUGS REPLACED BY BALLS |
|||
| 01 | 0200 S0 | 01 |
CYLINDER-HEAD REPERE 161A-A9A - DEPOL CEE 19-5 |
 | |||
| 0200 L6 | 01 | ||
| RP 0200 R8 | 01 |
- DEPOL CEE 95 UP TO O 7300 |
|
| | |||
| 0200 R8 | 01 |
REPERE 161A-A9A - DEPOL CEE 95 SINCE O 7301 |
|
| | |||
| 0200 P4 | 01 |
UP TO O 7023 WITH VALVES AND CAMSHAFT SHORT 0801 E8 |
|
| | |||
| 0200 P5 | 01 |
UP TO O 7023 WITH VALVES AND CAMSHAFT LONG 0801C2 |
|
| | |||
| 0200 R2 | 01 |
CARCASE
WITH VALVES AND CAMSHAFT |
|
| | |||
| 02 | 0209 F9 LE-9510 |
01 |
CYL HEAD GASKET EP 1,60 A005 WITHOUT ASBESTOS 2 NOTCHES - SEE A |
| | |||
| 0209 G0 LE-9510 |
01 |
EP 1,70 A005 WITHOUT ASBESTOS 3 NOTCHES - SEE A |
|
| | |||
| 0209 S0 | 01 |
EP 1,36 - 1 CRAN A005 WITHOUT ASBESTOS 1 NOTCH |
|
| | |||
| 0209 S1 | 01 |
EP 1,40 - 2 CRANS A005 WITHOUT ASBESTOS 2 NOTCH |
|
| | |||
| 0209 S2 | 01 |
EP 1,44 - 3 CRANS A005 WITHOUT ASBESTOS 3 NOTCH |
|
| | |||
| 0209 S3 | 01 |
EP 1,48 - 4 CRANS A005 WITHOUT ASBESTOS 4 NOTCH |
|
| | |||
| 0209 S4 | 01 |
EP 1,52 - 5 CRANS
A005 WITHOUT ASBESTOS 5 NOTCH |
|
| | |||
| 03 | 0204 65 | 10 | CYL-HEAD SCREW 12X1,50-123 |
| | |||
| 04 | 0205 13 | 10 | SCREW WASHER 13X24-3 |
| | |||
| 05 | 0208 01 | 01 |
PLUG
UP TO 01/1994 |
| | |||
| 07 | 0234 03 | 02 |
PLUG-CORE DIAM 27 |
| | |||
| 0233 10 | 02 |
DIAM 27,5 |
|
| | |||
| 0233 11 | 02 | DIAM 28,5 | |
| | |||
| 08 | 0234 20 | 01 |
CLDR LOCK PLATE
- DEPOL CEE 19-5 |
| | |||
| 0234 37 | 01 |
ROTO
- DEPOL CEE 95 |
|
| | |||
| 09 | 0236 32 | 01 |
CYL PLAT GASKET
A005 WITHOUT ASBESTOS |
| | |||
| 10 | 0245 44 | 01 | CYL-HEAD FITTG DIAM 23X85,5 |
| | |||
| 11 | 6936 51 | 06 | NUT WITH BASE 8X125-8-13 |
| | |||
| 12 | 0159 09 | 02 |
WELCH-PLUG DIAM 32
UP TO 09/1994 |
| | |||
| 0234 03 | 02 |
PLUG-CORE DIAM 27
SINCE 09/1994 |
|
| | |||
| 13 | 0163 25 | 05 |
CYL-BLOCK PLUG 9X100
UP TO O 7300 |
| | |||
| 14 | 0217 08 | 05 |
OBTURATION BALL DIAM 7,938
SINCE O 7301 |
| | |||
| 16 | 2208 11 | 02 |
PLUG 12X150
UP TO O 7300 |
| | |||
| 17 | 0217 07 | 02 |
OBTURATION BALL DIAM 9,525
SINCE O 7301 |
| | |||
| 19 | 0311 09 | 01 | PLUG DIAM 14X24-25 |
| | |||
| 21 | 6456 33 | 02 | SUPPORT SCREW 7X100-35 |
| | |||
| 23 | 0234 36 | 01 |
CLDR LOCK PLATE
UP TO O 7023 |
| | |||
| 0234 46 | 01 |
SINCE O 7024 |
|
| | |||
| 24 | 0236 47 | 01 |
RING-SEAL DIAM INT 46 EP 2 UP TO O 7023 |
| | |||
| 0236 58 | 01 |
DIAM INT 44 EP 2
A005 WITHOUT ASBESTOS SINCE O 7024 |
|
| | |||
| 26 | 6930 62 | 06 |
STUD 8X125-16-20-16-16 UP TO 01/1994 |
| | |||
| 0250 47 | 06 |
8X125-35-17-19-16
SINCE 01/1994 |
|
| | |||
| 9A | 6928 03 | 02 | SCREW WITH BASE 7X100-31 |
| | |||
| 9B | 6922 22 | 02 | SELF-TAP SCREWS 8X125-20 |
| | |||
| 9D | 6946 96 | 01 | PLAIN WASHER 8,4X16è1,5 |
| | |||
| 9E | 6962 12 | 01 | FLEXIBLE WASHER 7X13,7-0,8 |
| | |||
| 9F | 6981 37 | 01 | METALLIC CLAMP 16 A 27 |
