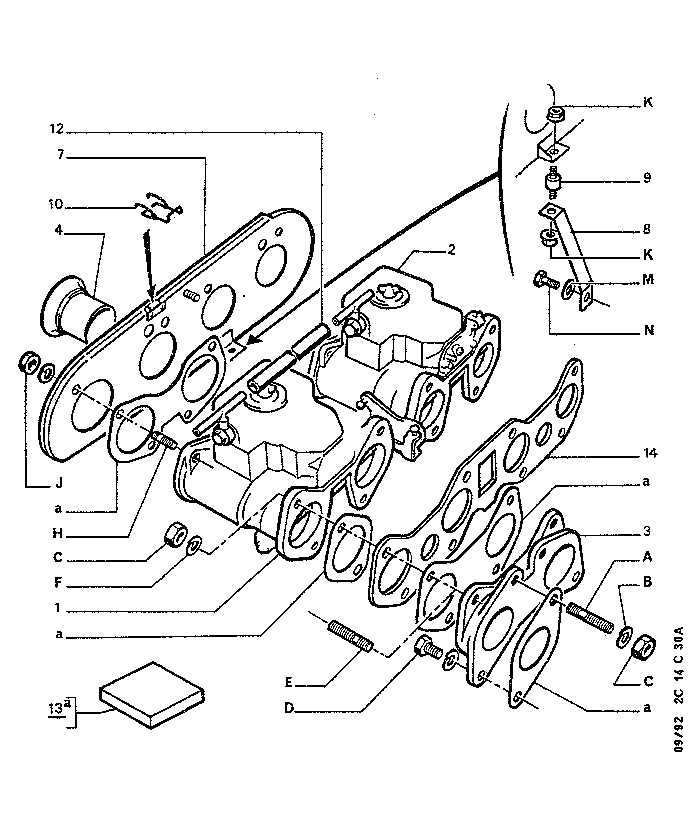

| GB | 205N 1 14C30A | CARBURETTOR DUAL BARREL |
CARBURETTOR TU24
| 01 | 1400 Q2 | 01 |
CARBURETTOR
WEBER- 40DCOM10 |
 | |||
| 02 | 1400 Q3 | 01 |
WEBER- 40DCOM11 |
| | |||
| 03 | 1404 A0 | 02 | SPACER |
| RP 1404 A7 | 01 | ||
| | |||
| 04 | 1411 E5 | 04 | AIR INTAKE TUBE |
| | |||
| 07 | 1422 A0 | 01 | SUPPORT PLATE |
| | |||
| 08 | 1436 14 | 01 | SUSPENSN STRUT |
| | |||
| 09 | 1439 18 | 01 | FLEXIB MOUNTING |
| | |||
| 10 | 1446 26 | 05 | CLIP L 30X23 |
| | |||
| 12 | 1573 31 | 02 | FUEL FEED PIPE CL 5X13-5000 |
| RP 1573 NY | 01 | ||
| | |||
| 13 | 1417 J5 | 01 | CARB GASKET KIT |
| | |||
| 14 | 1422 A1 | 01 | FIXING PLATE |
| | |||
| 9A | 6929 70 | 01 | STUD 8X125-20-17-14 |
| | |||
| 9B | 6962 13 | 01 | FLEXIBLE WASHER 8X17-0,8 |
| | |||
| 9C | 6939 36 | 01 | SELF LOCKG NUT 8X1,25 |
| | |||
| 9D | 6993 88 | 01 | SCREW BAG 8X125-25 |
| | |||
| 9E | 6929 76 | 01 | STUD 8X125-25-22-14 |
| | |||
| 9F | 6950 26 | 01 | SPRING WASHER 6,1X11,8-1,8 |
| RP 6953 04 | 01 | ||
| | |||
| 9G | 6932 19 NFP |
01 | HEXAGONAL NUT |
| | |||
| 9H | 6929 38 NFP |
01 | STUD 6X100-12-9-10 |
| | |||
| 9J | 6935 86 | 01 | SELF LOCKG NUT 6X100-5,5-10 |
| | |||
| 9K | 6934 26 | 01 | WASHER-NUT 6X100-7,2-10 |
| | |||
| 9M | 6932 06 | 01 | HEXAGONAL NUT 8X125 |
| | |||
| 9N | 6921 51 | 01 | CAPSCREW 10X150-55 |
