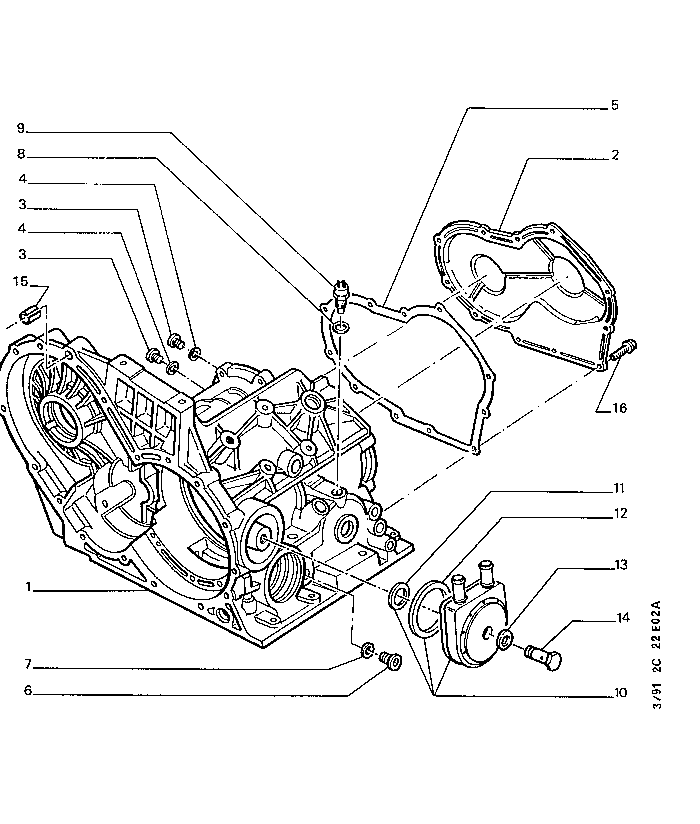

| GB | 205N 2 22E02A | AUTOMATIC GEAR-BOX HOUSING |
|
"OIL COOLER ADAPTOR" |
|||
| 01 | 2206 J0 | 01 | HOUSING |
| RP 2206 Q1 + 2586 11 |
01 01 |
UP TO B 548853 |
|
 | |||
| 2206 Q1 | 01 |
SINCE B 548854 |
|
| | |||
| 02 | 2207 76 | 01 | GEARBOX COVER |
| | |||
| 03 | 2208 23 | 02 | CASING PLUG 10 X 100 |
| | |||
| 04 | 2106 06 | 02 | SEAL 10 X 14 - 1 |
| | |||
| 05 | 2209 31 | 01 | HOUSING GASKET |
| | |||
| 06 | 2208 29 | 01 |
CASING PLUG
UP TO B 256249 |
| | |||
| 07 | 1166 15 | 01 |
SEAL 14,1X18-1,5
UP TO B 256249 |
| | |||
| 08 | 2257 19 | 01 | WASHERS SET 18X22-1,4/1,6/1,8/2 |
| | |||
| 09 | 2257 29 | 01 |
SWITCH
NOT WATERTIGHT |
| | |||
| 2257 35 | 01 |
WATERTIGHT |
|
| | |||
| 10 | 2275 15 | 01 |
DISTRIB CHAMBER EP 41 UP TO B 301513 |
| | |||
| 2275 31 | 01 |
EP 35,5
SINCE B 301514 |
|
| | |||
| 11 | 2275 20 | 01 |
DISTRIBT GASKET 21,59 X 31,91 X 4,83 UP TO B 301513 |
| | |||
| 2275 25 | 01 |
21,59X27,95-3,64 SINCE B 301514 |
|
| | |||
| 12 | 2275 21 | 01 |
67,56 X 76,2 - 4,83 UP TO B 301513 |
| | |||
| 2275 24 | 01 |
67,06X73,42-3,64
SINCE B 301514 |
|
| | |||
| 13 | 2275 27 | 01 | SEAL 20X26-1,5 |
| | |||
| 14 | 2275 29 | 01 |
HOLLOW SCREW 20X1,50-57 UP TO B 301513 |
| | |||
| 2284 18 | 01 |
20X1,50-51
SINCE B 301514 |
|
| | |||
| 15 | 6968 42 | 01 | PIN 12X15 |
| | |||
| 16 | 2210 22 | 11 | AGB SCREW 6X100-15 |
