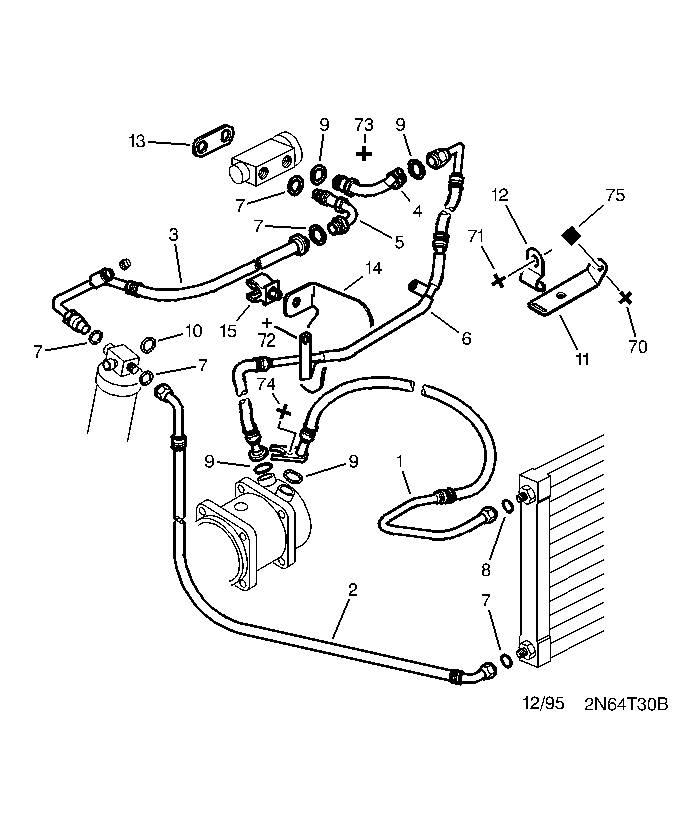

GB   205N 6 64T30B AIR CONDITIONING PIPING

XUD7 REFRIGERANT LIQUID R134

01 6457 PF 01 FREON TUBE 02 6457 PE 01 MANULI 03 6457 PG 01 MANULI 04 6457 PK 01 MANULI 05 6459 48 01 PIPE UNION 06 6457 PJ 01 FREON TUBE MANULI 07 6457 R1 05 RING-SEAL DIAM INT 7,65 08 6457 R2 01 DIAM INT 10,82 09 6457 R3 04 DIAM INT 13,5 10 6457 R0 01 DIAM INT 8,73 11 6457 L2 01 SUPPORT LUG 12 6457 L3 01 13 6467 23 01 RUNNING RING 14 6457 PL 01 PIPE BRACKET 15 6987 41 01 CLIP DIAM 10 70 6910 90 01 SCREW CBLX 4,2-38   RP 6925 93 01 71 6922 23 01 SELF-TAP SCREWS 6X100-20   RP 6922 54 01 72 6915 83 01 7X100-12 73 6925 50 01 SCREW WITH BASE 8X125-20 74 6913 H4 01 SCREW 10X125-30 75 6935 08 01 NUT WITH BASE 6X100-5-12,2
