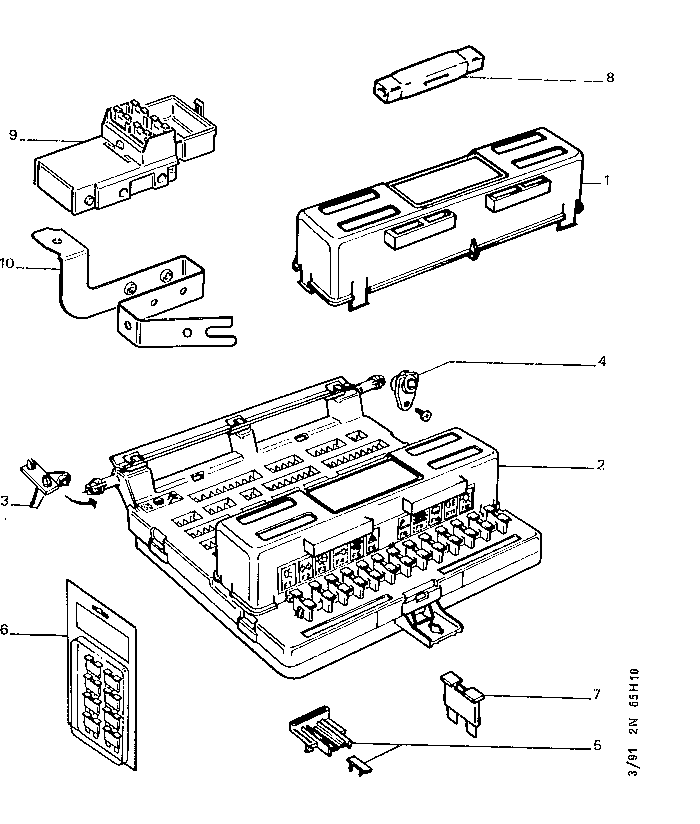

| GB | 205N 6 65H10A | FUSE BOX-FUSES |
|
A) THE BOX IS LAID OUT WITH FUSES ACCORDING TO THE ENGINE AND VEHICLE SPECIFICATION |
|||
| 01 | 6500 01 | 01 | FUSE BOX COVER |
 | |||
| 02 | 6500 12 | 01 | FUSE-BOX |
| | |||
| 03 | 6503 96 | 01 |
FUSE BOX BRACKT LEFT - LEFT HAND DRIVE |
| | |||
| 6503 98 | 01 |
LEFT - RIGHT HAND DRIVE |
|
| | |||
| 04 | 6503 97 | 01 |
RIGHT - LEFT HAND DRIVE |
| | |||
| 6503 99 | 01 |
RIGHT - RIGHT HAND DRIVE |
|
| | |||
| 05 | 6500 17 | 01 | |
| | |||
| 06 | 6504 51 | 01 | FUSES BLISTER |
| | |||
| 07 | 6504 29 | 01 |
FUSE 5 AMP |
| | |||
| 6504 22 | 01 |
15 AMP |
|
| | |||
| 6504 23 | 01 |
20 AMP |
|
| | |||
| 6504 24 | 01 |
25 AMP |
|
| | |||
| 6504 30 | 01 | 10 AMP | |
| | |||
| 08 | 6524 03 | 01 | HARNESS DIODE 5 AMP |
| | |||
| 09 | 6500 C5 | 01 |
SHUNT BOX
MAI |
| | |||
| 6555 91 | 01 | ||
| RP 6555 R3 | 01 |
- (E) |
|
| | |||
| 10 | 6500 98 | 01 | FUSE BOX BRACKT |
