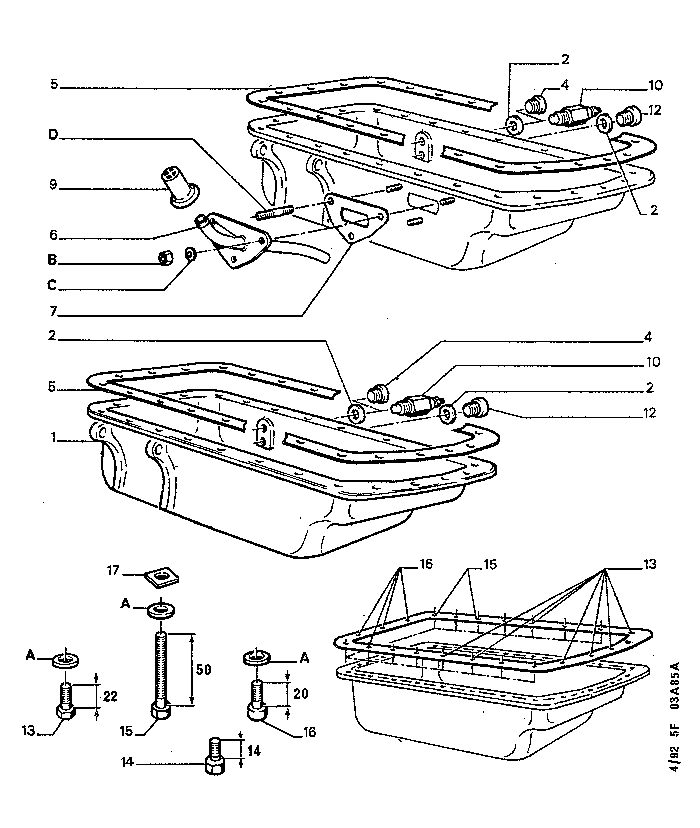

| GB | 309F 0 03A85A | OIL SUMP |
UP TO 09/1993
|
A) + UP TO 10/86: 0310 V12 (1) 0310 04 (1) 6932 04 (3) 6962 04 (3) 6915 36 (3) B) UP TO 10/86 REMOVE THE GUIDING LUG OUT OFF THE OIL SUMP BOTTOM COVER |
|||
| 01 | 0301 F4 | 01 | ENGINE OIL SUMP DIAM 20 |
| RP 0301 H1 + 6453 AS + 6453 G1 |
01 02 02 |
||
 | |||
| 02 | 0164 30 | 01 |
PLUG SEAL 16X22-2
A005 WITHOUT ASBESTOS |
| | |||
| 04 | 0163 21 | 01 | CASING PLUG 16X150-12 |
| | |||
| 05 | 0304 34 | 01 |
SUMP GASKET
A005 WITHOUT ASBESTOS |
| | |||
| 06 | 0310 03 NFP |
01 |
LOCKING PLATE
UP TO 10/1986 |
| | |||
| 07 | 0310 04 | 01 |
SUMP GASKET
UP TO 10/1986 |
| | |||
| 09 | 0311 09 | 01 |
PLUG DIAM 14X24-25
UP TO 10/1986 |
| | |||
| 10 | 1131 16 | 01 |
TEMPERAT SWITCH 140 DEG - DIAM 16
UP TO MOD 1988 |
| | |||
| 12 | 2221 11 | 01 | OIL DRAIN PLUG 16X150 |
| | |||
| 13 | 6921 17 | 18 |
CAPSCREW 7X100-22 |
| | |||
| 14 | 6921 24 | 02 | 7X100-14 |
| | |||
| 15 | 0307 10 | 02 |
SOCKET SCREW 7X100-50 |
| | |||
| 16 | 6913 33 | 03 | 7X100-20 |
| | |||
| 17 | 0305 15 | 23 | STOP PLATE 7,2X22,25-14 |
| | |||
| 9A | 6962 50 | 03 | FLEXIBLE WASHER 7X11,7-0,2 |
| | |||
| 9B | 6936 26 | 01 | HEXAGONAL NUT 6X100-5 |
| | |||
| 9C | 6962 04 | 01 | FLEXIBLE WASHER 6X12,2-0,5 |
| | |||
| 9D | 6930 74 | 01 | STUD 6X100-16,5-9-2-14,5 |
