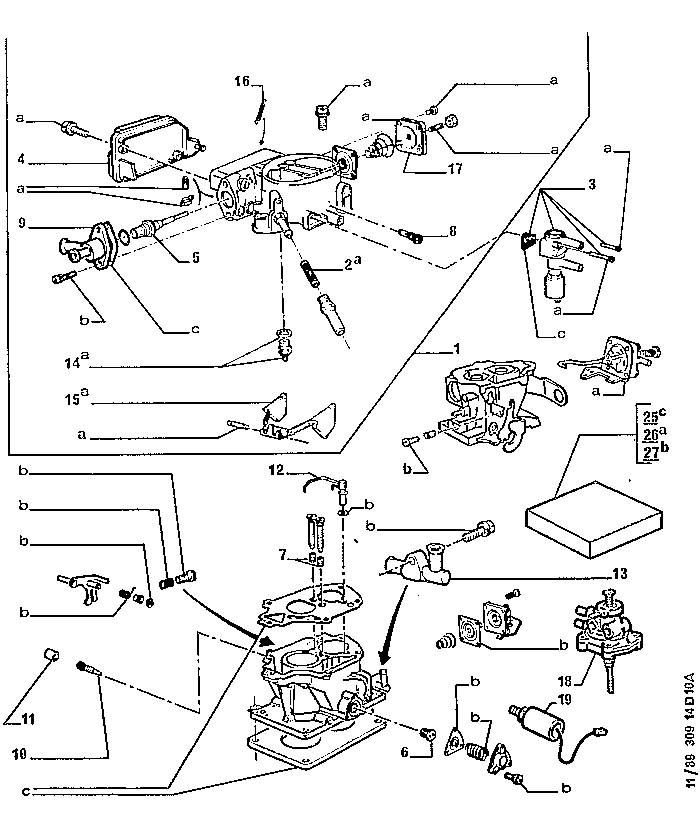

| GB | 309F 1 14D10A | CARBURATTOR DUAL BARREL DETAIL |
CARBURETTOR XU92C EXCEPT
| 01 | 1402 F8 NFP |
01 |
FLOAT CHB COVER
SOLEX |
 | |||
| 02 | 1403 B4 | 01 | PETROL FILTER |
| | |||
| 03 | 1403 C7 | 01 | ELECTRO-VALVE |
| | |||
| 04 | 1403 C9 | 01 | CARB CAPACITY |
| | |||
| 05 | 1407 C0 | 01 |
VACUUM UNIT
SOLEX |
| | |||
| 06 | 1410 44 | 01 | ENRICHER GAUGE 60 |
| | |||
| 07 | 1405 C4 | 01 | MAIN JET |
| | |||
| 08 | 1403 76 NFP |
01 | PILOT JET |
| | |||
| 09 | 1407 C5 | 01 |
CHOKE CONT UNIT
SOLEX |
| | |||
| 10 | 1412 E2 | 01 | MIXTURE SCREW |
| | |||
| 11 | 1412 C6 | 01 | SCREW PLUG |
| | |||
| 12 | 1409 C3 | 01 | PUMP INJECTOR |
| | |||
| 13 | 1433 50 | 01 |
REHEATING UNIT
SOLEX |
| | |||
| 14 | 1433 55 | 01 | CARB NEEDL VALV |
| | |||
| 15 | 1433 56 | 01 | CARBURETR FLOAT |
| | |||
| 16 | 1433 58 | 01 | FLAP SPRING |
| | |||
| 17 | 1406 C7 | 01 | CARBURETT.COVER |
| | |||
| 18 | 1408 E3 | 01 |
OPENING DEV ASY
- AIR CONDITIONING |
| | |||
| 19 | 1404 98 | 01 |
PILOT CUT-OUT
SOLEX |
| | |||
| 25 | 1417 N4 | 01 | CARB GASKET KIT |
| | |||
| 26 | 1417 F4 | 01 |
CARB REPAIR KIT REPAR |
| RP 1417 N5 | 01 | ||
| | |||
| 27 | 1417 F5 | 01 | REPAR |
| RP 1417 N5 | 01 | ||
