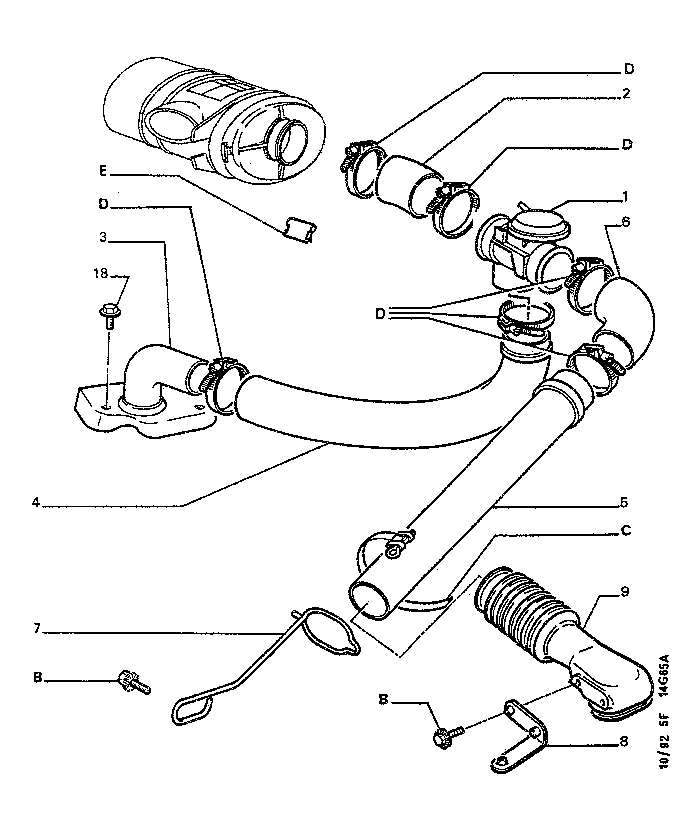

| GB | 309F 1 14G65A | DRY AIR FILTER AND HOSE |
| 01 | 1424 T8 | 01 |
INTAK AIR MIXER
- INJECTION XU9M |
 | |||
| 1424 E9 | 01 | ||
| | |||
| 02 | 1424 F0 | 01 | FILTER AIR HOSE |
| | |||
| 03 | 1425 E6 | 01 | AIR JACKET |
| | |||
| 04 | 1425 F8 | 01 | HOT AIR PIPE |
| | |||
| 05 | 1425 F9 | 01 |
AIR INTAKE PIPE
- INJECTION XU9M UP TO S 10034082 |
| | |||
| 1425 T8 | 01 |
- INJECTION XU9M SINCE S 10034083 - INJECTION XU5M |
|
| | |||
| 06 | 1424 C2 | 01 | FILTER AIR HOSE |
| | |||
| 07 | 1425 G1 | 01 |
PIPE BRACKET
- INJECTION XU9M UP TO S 10034082 |
| | |||
| 08 | 1425 P7 | 01 |
- INJECTION XU9M SINCE S 10034083 - INJECTION XU5M |
| | |||
| 09 | 1425 P6 | 01 |
AIR INTAKE PIPE
- INJECTION XU9M SINCE S 10034083 - INJECTION XU5M |
| | |||
| 18 | 6915 83 | 01 |
SELF-TAP SCREWS 7X100-12 UP TO 01/1991 |
| | |||
| 6922 73 | 01 |
6X100-12 SINCE 01/1991 |
|
| | |||
| 9B | 6922 97 | 01 | 6X100-20 |
| | |||
| 9C | 6980 20 | 01 | ADJUST COLLAR L=650 |
| | |||
| 9D | 6981 43 | 01 | METALLIC CLAMP 60 A 80 |
| | |||
| 9E | 6986 83 | 01 | CLIP 2,5--2,8 |
