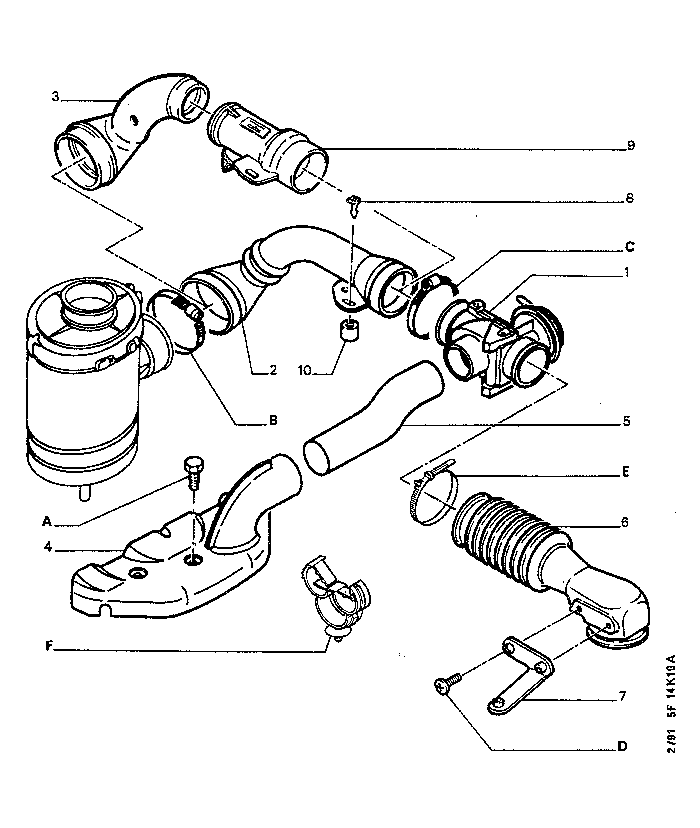

| GB | 309F 1 14K10A | AIR REHEATING |
| 01 | 1424 T8 | 01 |
INTAK AIR MIXER
- EXCEPT TU3F2 - CARBURETTOR TU3F2 |
 | |||
| 02 | 1425 J9 | 01 |
FILTER AIR HOSE
- CARBURETTOR TU1 - CARBURETTOR TU3A - INJECTION TU1M |
| | |||
| 1425 K1 | 01 |
- CARBURETTOR TU3S - INJECTION TU3M - INJECTION TU3FM |
|
| | |||
| 1425 W1 | 01 |
- CARBURETTOR TU3F2 |
|
| | |||
| 03 | 1424 H8 | 01 |
- ASSEMBLY WITH PRE-FILTER |
| | |||
| 04 | 1425 P8 | 01 |
AIR JACKET
- INJECTION TU3M |
| | |||
| 05 | 1425 K5 | 01 | HOT AIR PIPE |
| | |||
| 06 | 1425 P6 | 01 | AIR INTAKE PIPE |
| | |||
| 07 | 1425 P7 | 01 | PIPE BRACKET |
| | |||
| 08 | 1425 K2 | 01 | FIXING BUTTON |
| | |||
| 09 | 1421 A8 | 01 | PRE-FILTER |
| | |||
| 10 | 1425 K3 | 01 | SPACER |
| | |||
| 9A | 6922 73 | 01 | SELF-TAP SCREWS 6X100-12 |
| | |||
| 9B | 6981 48 | 01 | METALLIC CLAMP DIAM 100-125 LARG 14 |
| | |||
| 9D | 6924 F3 | 01 | CAPSCREW 6 X 100 - 16 |
| | |||
| 9E | 6980 32 | 01 | STRAP L=427 LARG=8 |
| | |||
| 9F | 6992 F1 | 01 | CLIP DIAM 15-25 |
