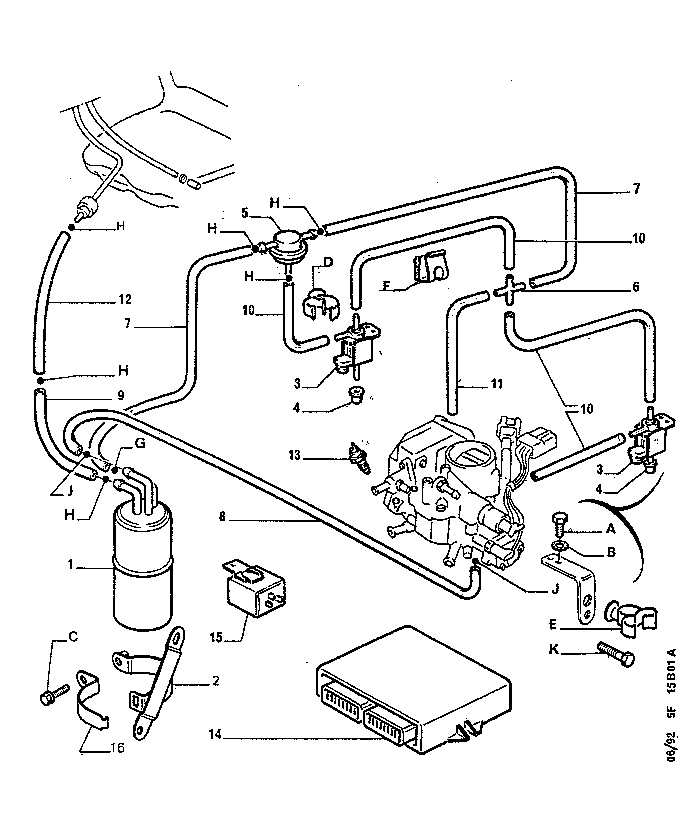

| GB | 309F 1 15B01A | FUEL VAPOUR INDUCTION |
| 01 | 1502 34 | 01 | ABSORBER |
 | |||
| 02 | 1502 35 | 01 | ABSORBR SUPPORT |
| | |||
| 03 | 1628 J2 | 01 | ELECTRO VALVE |
| | |||
| 04 | 1624 60 | 01 | PLUG 4,3X9,3-20 |
| | |||
| 05 | 1626 23 | 01 | DRAIN VALVE |
| | |||
| 06 | 1561 C4 | 01 | 4 WAY UNION DIA 6 |
| | |||
| 07 | 1503 54 | 01 | DEGASSING TUBE |
| | |||
| 08 | 1503 57 | 01 | |
| | |||
| 09 | 1505 60 | 01 | |
| | |||
| 10 | 5953 06 | 01 | VACM UNIT UNION CL 3,5X8-5000 |
| | |||
| 11 | 1505 62 | 01 | DEGASSING TUBE |
| | |||
| 12 | 1503 56 | 01 | VENTING PIPE DIAM 6X8-LONG 6420 |
| | |||
| 13 | 1338 02 | 01 |
TEMPERATURE
VALEO (ALLUM) 73201302 |
| | |||
| 14 | 1628 E3 | 01 | ELECTRONIC BOX |
| | |||
| 15 | 6555 88 | 01 | ELECTRIC RELAY NOIR OU VIOLET |
| | |||
| 16 | 1502 56 | 01 | FLANGE |
| | |||
| 9A | 6922 07 | 01 | CAPSCREW 4X70-10 |
| | |||
| 9B | 6958 54 | 01 | SPRING WASHER 4,2X8-0,5 |
| | |||
| 9C | 6922 54 | 01 | SELF-TAP SCREWS 6 X 100 - 20 |
| | |||
| 9D | 6992 F2 | 01 |
CLIP DIAM 11-18 |
| | |||
| 9E | 6992 F1 | 01 |
DIAM 15-25 |
| | |||
| 9F | 6992 F0 | 01 | |
| | |||
| 9G | 6981 E1 | 01 |
METALLIC CLAMP 8 A 16 LARG 5 |
| | |||
| 9H | 6981 36 | 01 |
12 A 20 |
| | |||
| 9J | 6981 37 | 01 | 16 A 27 |
| | |||
| 9K | 6993 34 | 01 | SCREW BAG 4,8-19 |
