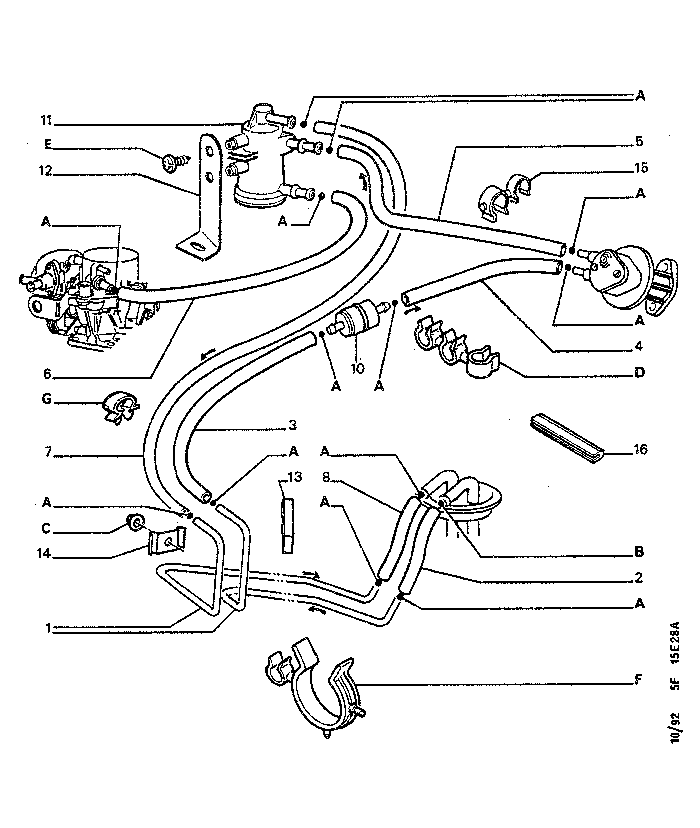

| GB | 309F 1 15E28A | FUEL PIPING |
| 01 | 1579 26 | 02 | FUEL FEED PIPE 6,5X8-3970 CL |
 | |||
| 02 | 1573 38 | 01 | RUBBER HOSE 7X15-9X17-850 |
| | |||
| 03 | 1573 NZ | 01 | FUEL FEED PIPE CL 7X13-5000 |
| | |||
| 04 | 1573 G6 | 01 | RUBBER HOSE |
| | |||
| 05 | 1573 G7 | 01 | |
| | |||
| 06 | 1573 G8 | 01 | |
| | |||
| 07 | 1573 G9 | 01 | |
| | |||
| 08 | 1573 NY | 01 | FUEL FEED PIPE CL 5X13-5000 |
| | |||
| 10 | 1567 20 | 01 |
FUEL FILTER GAMME PTB |
| | |||
| 1567 21 | 01 | GAMME PRO | |
| | |||
| 11 | 1563 94 | 01 | DEGASSING TANK |
| | |||
| 12 | 1563 96 | 01 | REGULAT BRACKET |
| | |||
| 13 | 1565 65 | 06 | CLIP 8X8-8 |
| | |||
| 14 | 1565 27 | 01 | FUEL PIPE CLAMP |
| | |||
| 15 | 1316 06 | 01 | SWIVEL CLIP DIAM 22-22-10 |
| RP 6994 67 + 6994 91 |
02 01 |
||
| | |||
| 16 | 8451 19 | 01 | CLIPPING STRIP L=2840 CL |
| | |||
| 9A | 6981 E1 | 07 |
METALLIC CLAMP 8 A 16 LARG 5 |
| | |||
| 9B | 6981 36 | 01 | 12 A 20 |
| | |||
| 9C | 6935 08 | 01 | NUT WITH BASE 6X100-5-12,2 |
| | |||
| 9D | 6992 S5 | 01 | CLIP DIAM 15-11-13 |
| | |||
| 9E | 6924 E2 | 02 | SCREW CBLX 4-10 |
| | |||
| 9F | 6992 J1 | 01 |
CLIP 9,5-10,5--39-45 |
| | |||
| 9G | 6986 81 | 01 | DIAM 17 |
