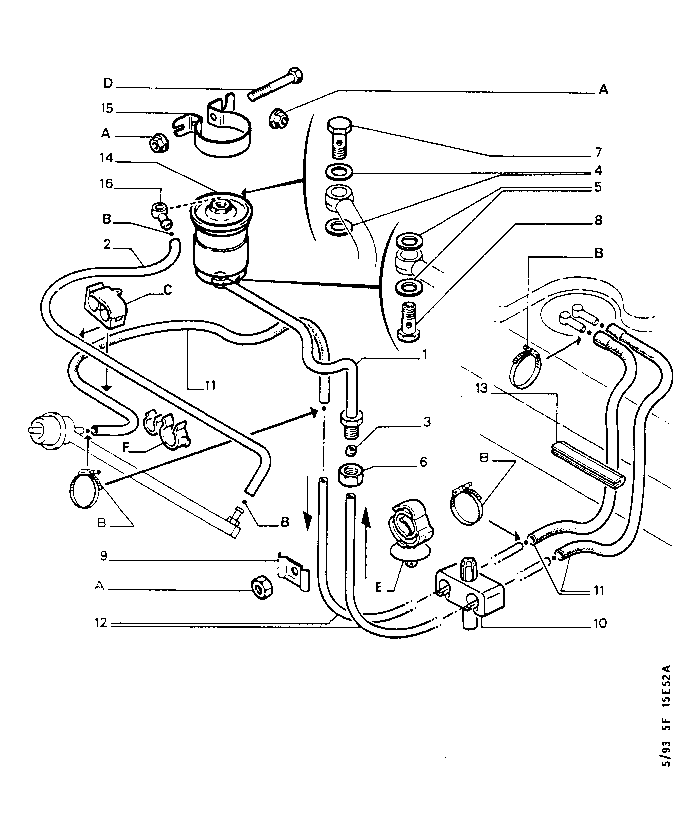

| GB | 309F 1 15E52A | FUEL PIPING |
| 01 | 1557 70 | 01 | ADJUSTABL UNION |
 | |||
| 02 | 1557 B2 | 01 | RUBBER HOSE |
| | |||
| 03 | 1562 36 | 01 | RING |
| | |||
| 04 | 1562 44 | 02 | FUEL PIPE SEAL |
| | |||
| 05 | 1562 56 | 02 | |
| | |||
| 06 | 1563 23 | 01 | UNION NUT DIA 12 |
| | |||
| 07 | 1563 49 | 01 | UNION SCREW |
| | |||
| 08 | 1563 53 | 01 | |
| | |||
| 09 | 1565 27 | 01 | FUEL PIPE CLAMP |
| | |||
| 10 | 1565 32 | 06 |
CLIP 4,8X6 UP TO 03/1993 |
| | |||
| 4814 70 | 06 |
SINCE 03/1993 |
|
| | |||
| 11 | 1573 T3 | 01 | RUBBER HOSE |
| | |||
| 12 | 1579 26 | 01 | FUEL FEED PIPE 6,5X8-3970 CL |
| | |||
| 13 | 8451 19 | 01 | CLIPPING STRIP L=2840 CL |
| | |||
| 14 | 1567 11 | 01 |
FUEL FILTER
BOSCH PURFLUX- |
| | |||
| 15 | 1565 63 | 01 | SUPPORT CLAMP |
| | |||
| 16 | 1557 A3 | 01 | RUBBER HOSE |
| | |||
| 9A | 6935 08 | 01 | NUT WITH BASE 6X100-5-12,2 |
| | |||
| 9B | 6981 36 | 01 | METALLIC CLAMP 12 A 20 |
| | |||
| 9C | 6995 K0 | 01 | CLIP DIAM 12 |
| | |||
| 9D | 6921 10 | 01 | CAPSCREW 6X100-40 |
| | |||
| 9E | 6992 F1 | 01 | CLIP DIAM 15-25 |
| | |||
| 9F | 6992 71 | 01 | SWIVEL CLIP DIAM 14-8 |
| RP 6994 91 + 6994 72 |
01 01 |
||
