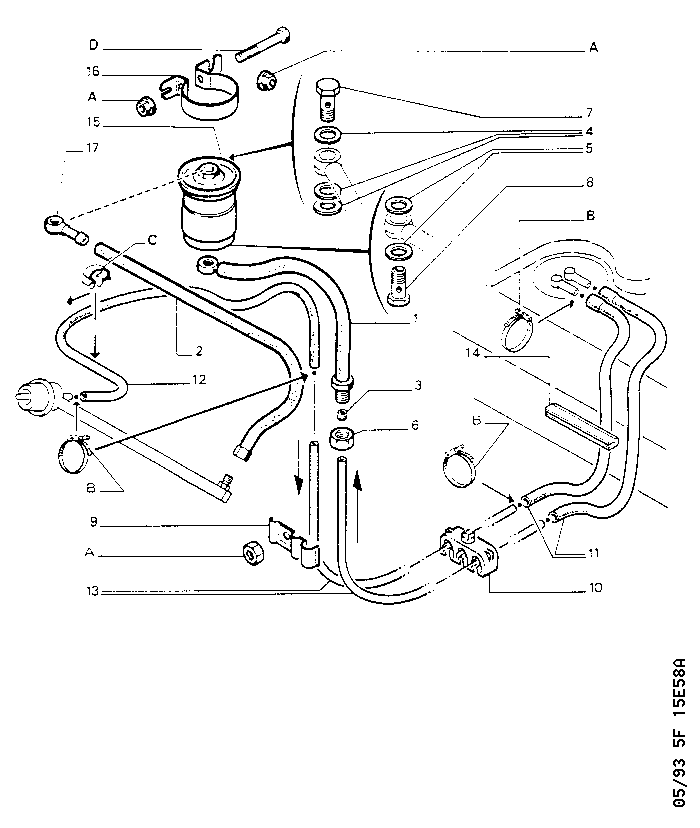

| GB | 309F 1 15E58A | FUEL PIPING |
UP TO 09/1991
| 01 | 1557 95 | 01 | ADJUSTABL UNION |
 | |||
| 02 | 1577 63 | 01 | RUBBER HOSE |
| | |||
| 03 | 1562 36 | 01 | RING |
| | |||
| 04 | 1562 44 | 03 | FUEL PIPE SEAL |
| | |||
| 05 | 1562 45 | 02 |
14,1X18-1 UP TO S 10409128 |
| | |||
| 1562 56 | 02 |
SINCE S 10409129 |
|
| | |||
| 06 | 1563 23 | 01 | UNION NUT DIA 12 |
| | |||
| 07 | 1563 49 | 01 | UNION SCREW |
| | |||
| 08 | 1563 53 | 01 | |
| | |||
| 09 | 1565 86 | 01 | FUEL PIPE CLAMP |
| | |||
| 10 | 1565 65 | 06 | CLIP 8X8-8 |
| | |||
| 11 | 1573 NZ | 02 | FUEL FEED PIPE CL 7X13-5000 |
| | |||
| 12 | 1573 A2 | 01 | RUBBER HOSE DIAM 7X13 CL |
| | |||
| 13 | 1579 26 | 02 | FUEL FEED PIPE 6,5X8-3970 CL |
| | |||
| 14 | 8451 19 | 01 | CLIPPING STRIP L=2840 CL |
| | |||
| 15 | 1567 11 | 01 |
FUEL FILTER
BOSCH PURFLUX- |
| | |||
| 16 | 1565 63 | 01 | SUPPORT CLAMP |
| | |||
| 17 | 1557 96 | 01 |
ADJUSTABL UNION
UP TO S 10403801 |
| | |||
| 1557 A3 | 01 |
RUBBER HOSE
SINCE S 10403802 |
|
| | |||
| 9A | 6935 08 | 03 | NUT WITH BASE 6X100-5-12,2 |
| | |||
| 9B | 6981 36 | 06 | METALLIC CLAMP 12 A 20 |
| | |||
| 9C | 6986 81 | 01 | CLIP DIAM 17 |
| | |||
| 9D | 6921 10 | 01 | CAPSCREW 6X100-40 |
