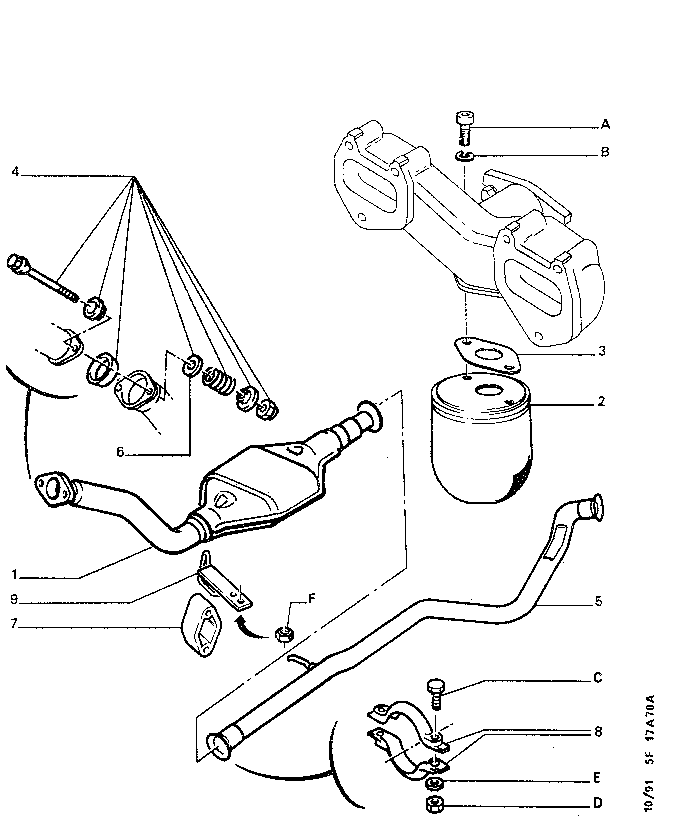

| GB | 309F 1 17A70A | EXHAUST FRONT PART |
| 01 | 1705 24 | 01 | PIPE |
 | |||
| 02 | 1721 28 | 01 | MUFFLER |
| | |||
| 03 | 1721 01 | 01 |
SILENCER GASKET
A003 WITH ASBESTOS |
| | |||
| 1710 99 | 01 |
A005 WITHOUT ASBESTOS |
|
| | |||
| 04 | 1798 45 | 01 | FIXING KIT |
| | |||
| 05 | 1717 10 | 01 | INTERMED PIPING |
| | |||
| 06 | 1712 28 | 02 |
PIPE WASHER
A005 WITHOUT ASBESTOS |
| | |||
| 07 | 1755 40 | 01 | EXHAUST MOUNTG |
| | |||
| 08 | 1713 55 | 02 | HALF-CLAMP ASSY |
| | |||
| 09 | 1735 80 | 01 | SUPPORT HOOK |
| | |||
| 9A | 6913 07 | 02 | SOCKET SCREW 8X125-25 |
| | |||
| 9B | 6953 06 | 02 | SPRING WASHER 8X15-2,2 |
| | |||
| 9C | 6922 88 | 02 | SELF-TAP SCREWS 8X125-40 |
| | |||
| 9D | 6936 38 | 02 | NUT WITH BASE 8X125-8 |
| RP 6936 70 | 01 | ||
| | |||
| 9E | 6935 86 | 02 |
SELF LOCKG NUT 6X100-5,5-10 |
| | |||
| 9F | 6935 53 | 02 | 10X150-9-17 |
