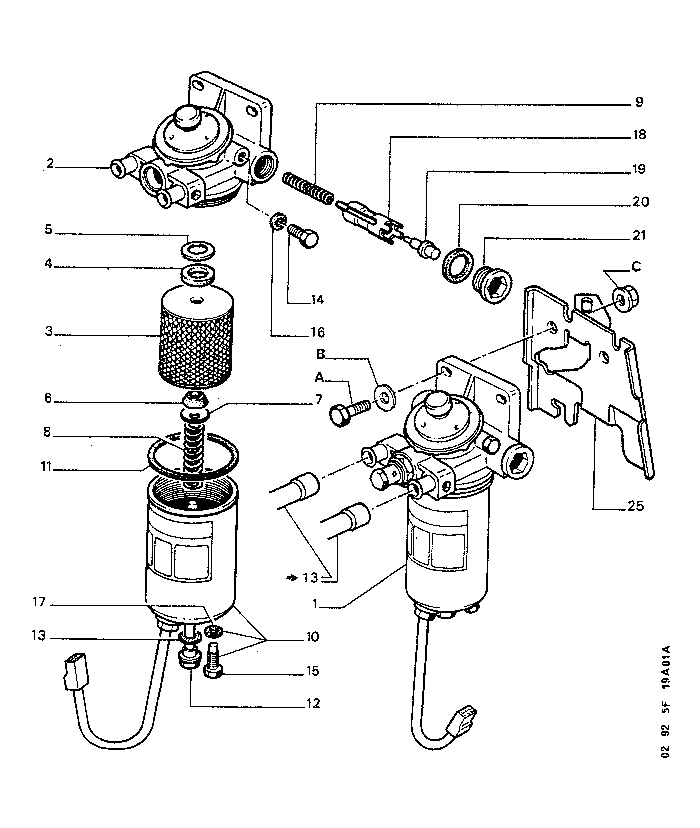

| GB | 309F 1 19A01A | STRAINER FILTER AND DETAIL |
DIESEL XU SEE A
UP TO 11/1989
|
A) MOUNTING WITH WATER CIRCULATION |
|||
| 01 | 1901 28 | 01 | STRAINER FILTER |
 | |||
| 02 | 1904 23 | 01 | FILTER COVER |
| | |||
| 03 | 1906 11 | 01 |
FILTERING PAD
BOSCH |
| | |||
| 04 | 1907 02 LE-9404 |
01 | FILTER SEAL 18X25X5 |
| | |||
| 05 | 1907 03 NFP |
01 | CLEANER CUP |
| | |||
| 06 | 1908 02 LE-9404 |
01 | FILTER SEAL |
| | |||
| 07 | 1908 08 LE-9406 |
01 | CLEANER CUP |
| | |||
| 08 | 1909 08 LE-9406 |
01 | FILTER SPRING |
| | |||
| 09 | 1919 06 LE-9605 |
01 | REGULATR SPRING |
| | |||
| 10 | 1911 36 | 01 | FILTER BOWL |
| | |||
| 11 | 1912 02 LE-9404 |
01 | FILTER GASKET 73X77X3 |
| | |||
| 12 | 1914 24 | 01 | TIGHTENING KIT |
| | |||
| 13 | 1915 01 LE-9405 |
01 | SCREW GASKET |
| | |||
| 14 | 1917 16 | 01 | SCREW KIT |
| | |||
| 15 | 1917 18 | 01 | DRAIN SCREW KIT |
| | |||
| 16 | 1973 11 | 01 | SEAL 4,9X8,2-1 |
| | |||
| 17 | 1918 12 NFP |
01 | SCREW GASKET |
| | |||
| 18 | 1919 07 LE-9605 |
01 | FILTR REGULATOR |
| | |||
| 19 | 1919 15 | 01 | THERMOSTAT KIT |
| | |||
| 20 | 1919 09 LE-9404 |
01 | PLUG SEAL |
| | |||
| 21 | 1917 19 | 01 | CAPS KIT |
| | |||
| 25 | 1902 27 | 01 | FILTER BRACKET |
| | |||
| 9A | 6993 89 | 01 | SCREW BAG 8X125-30 |
| | |||
| 9B | 6958 58 | 01 | SPRING WASHER 8,3X14,3-0,8 |
| | |||
| 9C | 6936 38 | 01 | NUT WITH BASE 8X125-8 |
| RP 6936 70 | 01 | ||
