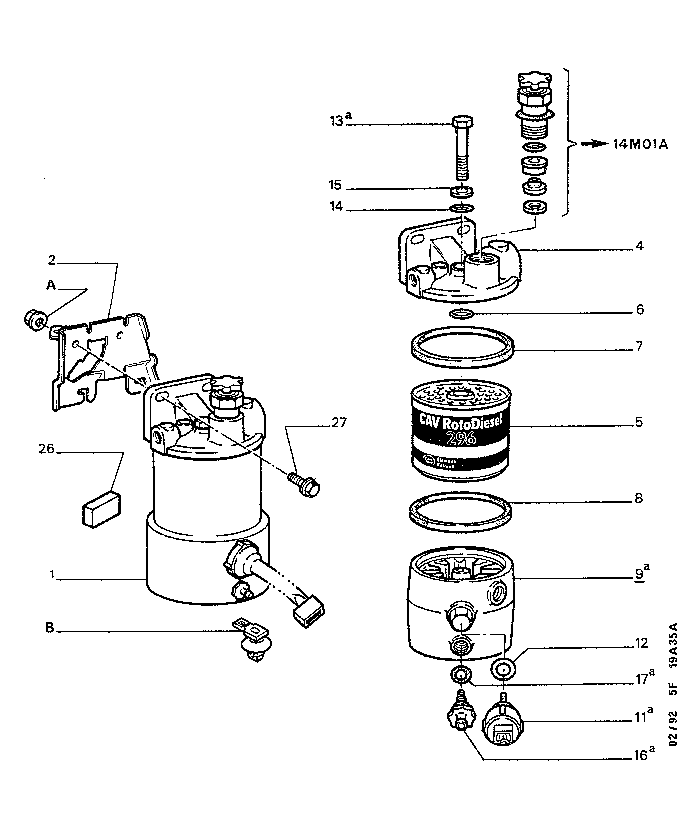

| GB | 309F 1 19A35A | STRAINER FILTER AND DETAIL |
DIESEL XU SEE A
SINCE 11/1989
|
A) ROTO DIESEL AND LUCAS - PLUNGER |
|||
| 01 | 1901 37 | 01 | STRAINER FILTER |
 | |||
| 02 | 1902 27 | 01 |
FILTER BRACKET
UP TO 05/1992 |
| | |||
| 04 | 1904 12 NFP |
01 | FILTER COVER |
| | |||
| 05 | 1906 14 | 01 | FILTERING PAD |
| | |||
| 06 | 1907 06 | 01 | RING-SEAL |
| | |||
| 07 | 1912 07 | 01 | FILTER SEAL |
| | |||
| 08 | 1912 08 | 01 | |
| | |||
| 09 | 1911 23 | 01 | FILTER BOWL |
| | |||
| 11 | 1913 04 | 01 |
LEVEL DETECTOR
ROTO DIESEL |
| | |||
| 12 | 1918 15 | 01 | SCREW GASKET |
| | |||
| 13 | 1914 18 | 01 | FILTER SCREW |
| | |||
| 14 | 1915 09 | 01 | PLAIN WASHER 7X14,5-2,5 |
| | |||
| 15 | 1915 10 | 01 | RING-SEAL |
| | |||
| 16 | 1917 11 | 01 | DRAIN SCREW |
| | |||
| 17 | 1918 13 | 01 | SCREW GASKET |
| | |||
| 26 | 1537 07 | 01 | SUPPORT SHIM |
| RP 8328 T0 | 01 | ||
| | |||
| 27 | 6923 78 | 02 |
SELF-TAP SCREWS 8X125-25 - EXCEPT XUD7T |
| | |||
| 6923 16 | 02 |
8X125-35
- XUD7T |
|
| | |||
| 9A | 6936 91 | 01 | NUT WITH BASE 6 X 100 - 6 - 10 |
| RP 6936 A0 | 01 | ||
| | |||
| 9B | 6995 05 | 01 | CLIP |
