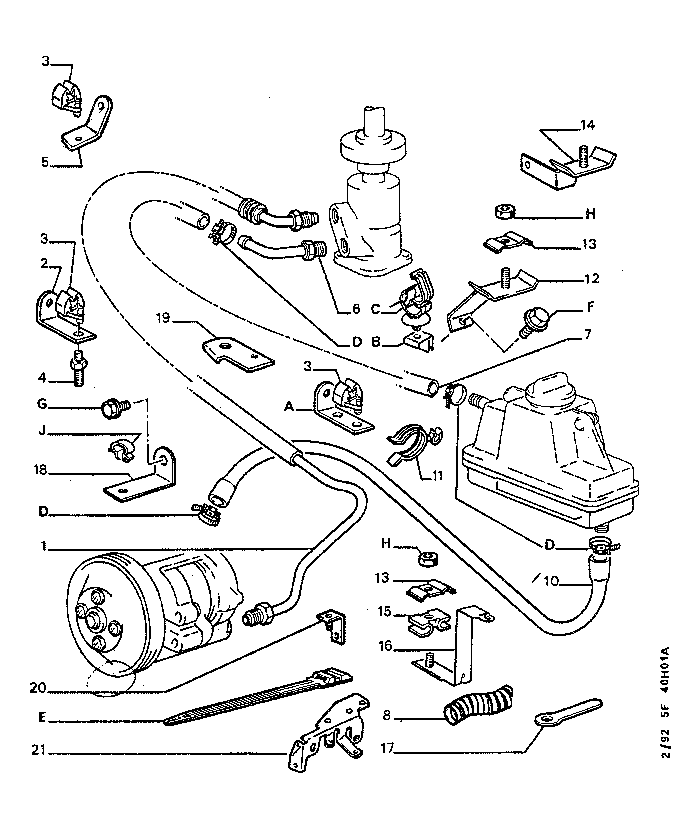

| GB | 309F 4 40H01A | POWER STEERING OIL PIPING |
| 01 | 4020 B2 | 01 |
HIGH PRES FLEXB
- GT (E) UP TO 10/1988 - GT (E) - SINCE 08/1989 UP TO 02/1990 |
 | |||
| 4020 E9 | 01 |
HIGH PRESS PIPE
- LEFT HAND DRIVE EXCEPT GT UP TO 11/1990 - LEFT HAND DRIVE GT EXCEPT (E) UP TO 11/1990 - GT (E) SINCE 10/1988 UP TO 08/1989 |
|
| | |||
| 4020 F1 | 01 |
- RIGHT HAND DRIVE UP TO 11/1990 |
|
| | |||
| 4020 R6 | 01 |
HIGH PRES FLEXB
- LEFT HAND DRIVE EXCEPT GT SINCE 11/1990 - LEFT HAND DRIVE GT EXCEPT (E) SINCE 11/1990 - GT (E) SINCE 06/1991 |
|
| | |||
| 4020 R7 | 01 |
- RIGHT HAND DRIVE SINCE 11/1990 |
|
| | |||
| 4020 Q9 | 01 |
- LEFT HAND DRIVE EXCEPT GT SINCE 11/1990 - LEFT HAND DRIVE GT EXCEPT (E) SINCE 11/1990 - GT (E) SINCE 10/1990 UP TO 06/1991 |
|
| | |||
| 4020 R1 | 01 |
- RIGHT HAND DRIVE SINCE 11/1990 |
|
| | |||
| 4020 H3 | 01 |
HIGH PRESS PIPE
- GT (E) SINCE 02/1990 UP TO 10/1990 |
|
| | |||
| 02 | 4018 33 | 01 |
STRG PIPE CLAMP
- CARBURETTOR SINCE S 2521017 - INJECTION LEFT HAND DRIVE |
| | |||
| 03 | 4018 38 | 01 |
CLIP 1T 10
- EXCEPT GT SINCE 11/1990 - GT EXCEPT (E) SINCE 11/1990 - GT (E) SINCE 02/1990 |
| | |||
| 04 | 1737 02 | 01 | STUD |
| | |||
| 05 | 4018 34 | 01 |
STRG PIPE CLAMP
- EXCEPT GT SINCE 11/1990 - GT EXCEPT (E) SINCE 11/1990 - GT (E) SINCE 02/1990 UP TO 10/1990 |
| | |||
| 06 | 4020 44 | 01 |
UNION P A S
- LEFT HAND DRIVE |
| | |||
| 4020 F9 | 01 |
- RIGHT HAND DRIVE |
|
| | |||
| 07 | 4020 Q7 | 01 | |
| | |||
| 08 | 5803 20 | 01 | PROTECT SHEATH 6X7-45 |
| | |||
| 10 | 4020 H9 | 01 | UNION P A S |
| | |||
| 11 | 4018 37 | 01 |
SWIVEL CLIP
- EXCEPT GT SINCE 11/1990 - GT EXCEPT (E) SINCE 11/1990 - GT (E) SINCE 02/1990 UP TO 10/1990 |
| | |||
| 12 | 4018 24 | 01 |
STRG PIPE CLAMP
- INJECTION UP TO 11/1990 - CARBURETTOR SINCE S 2521017 UP TO 11/1990 |
| | |||
| 13 | 2287 02 | 02 |
PIPES STRAP
UP TO 11/1990 |
| | |||
| 14 | 4018 28 | 01 |
STRG PIPE CLAMP
- CARBURETTOR LEFT HAND DRIVE EXCEPT GT UP TO S 2521016 - CARBURETTOR LEFT HAND DRIVE GT EXCEPT (E) UP TO S 2521016 - GT (E) UP TO 02/1990 |
| | |||
| 15 | 4018 14 | 01 |
UP TO 11/1990 |
| | |||
| 16 | 4018 17 | 01 |
UP TO 11/1990 |
| | |||
| 17 | 6547 02 | 01 | SWIVEL CLIP DIAM 8,5 LONG 55 |
| | |||
| 18 | 4018 30 | 01 |
CLIP DIAM 6,5-7,5--L=44
- EXCEPT GT UP TO 11/1990 - GT EXCEPT (E) UP TO 11/1990 - GT (E) UP TO 06/1991 |
| | |||
| 19 | 4021 07 | 01 |
LINE BRACKET
- EXCEPT GT SINCE 11/1990 - GT EXCEPT (E) SINCE 11/1990 - GT (E) SINCE 10/1990 UP TO 06/1991 |
| | |||
| 20 | 4018 27 | 01 |
STRG PIPE CLAMP
- GT (E) UP TO 02/1990 |
| | |||
| 21 | 6500 66 | 01 |
BRACKET
- GT (E) UP TO 02/1990 |
| | |||
| 9A | 6997 41 | 01 | CABLE SUPPORT |
| | |||
| 9B | 6992 A8 | 01 |
CLIP 1,5-3--6,5 |
| | |||
| 9C | 6992 G7 | 01 | DIAM 11-20 |
| RP 6992 H3 | 01 | ||
| | |||
| 9D | 6981 36 | 01 | METALLIC CLAMP 12 A 20 |
| | |||
| 9E | 6980 47 | 01 | STRAP LONG 171 LARG 9 |
| | |||
| 9F | 6922 C8 | 01 |
SELF-TAP SCREWS 8X125-16 |
| | |||
| 9G | 6922 59 | 01 | 7X100-15 |
| | |||
| 9H | 6935 08 | 01 | NUT WITH BASE 6X100-5-12,2 |
| | |||
| 9J | 6986 81 | 01 | CLIP DIAM 17 |
