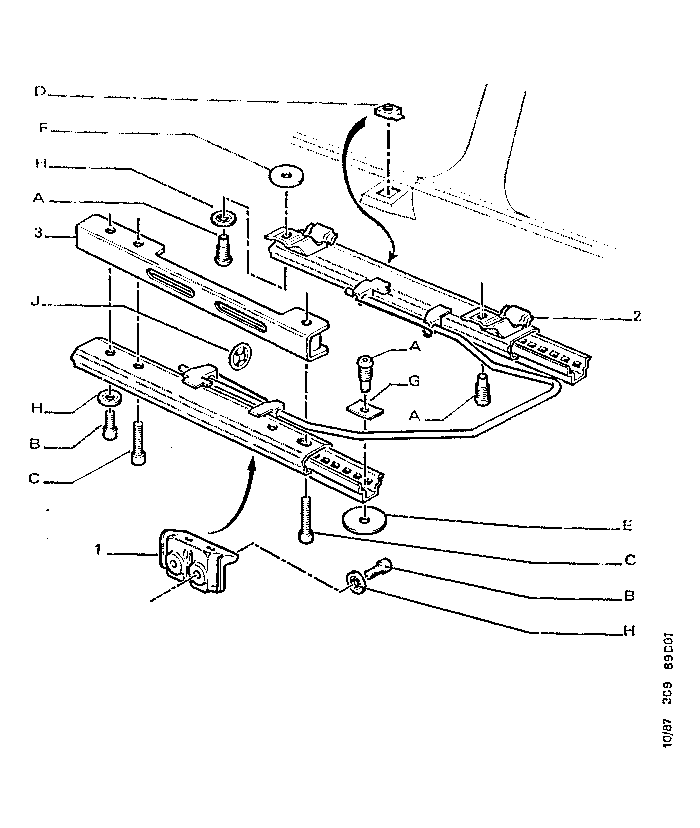

| GB | 309F 8 89D01A | FRONT SEAT SLIDE |
| 01 | 8917 61 NFP |
02 |
SLIDE BRACKET INT
- EXCEPT (E) |
 | |||
| 02 | 8917 80 | 01 |
SEAT SLIDE LEFT - (E) |
| | |||
| 8916 64 | 01 |
LEFT |
|
| | |||
| 8917 82 | 01 |
RIGHT - (E) |
|
| | |||
| 8917 91 | 01 | RIGHT | |
| | |||
| 03 | 8917 84 | 01 |
SLIDE SPACER LEFT INT |
| | |||
| 8917 85 | 01 | RIGHT INT | |
| | |||
| 9A | 6909 76 | 01 |
SCREW CBX 8X125-30 |
| | |||
| 9B | 6916 40 | 01 |
8X125-25 |
| | |||
| 9C | 6913 12 | 01 | 8X125-50 |
| | |||
| 9D | 6941 80 | 01 | CAGED NUT 8X125-14-23,6-7,2 |
| | |||
| 9E | 6946 62 | 01 |
PLAIN WASHER 9X50-1,5 |
| | |||
| 9F | 6948 34 | 01 | 8X30-2 |
| | |||
| 9G | 6954 18 | 01 | STOP PLATE 8X22-13 |
| | |||
| 9H | 6962 61 | 01 | SPRING WASHER 8X16-1,4 |
| | |||
| 9J | 6987 98 | 01 | CLIP 4X11,5 |
