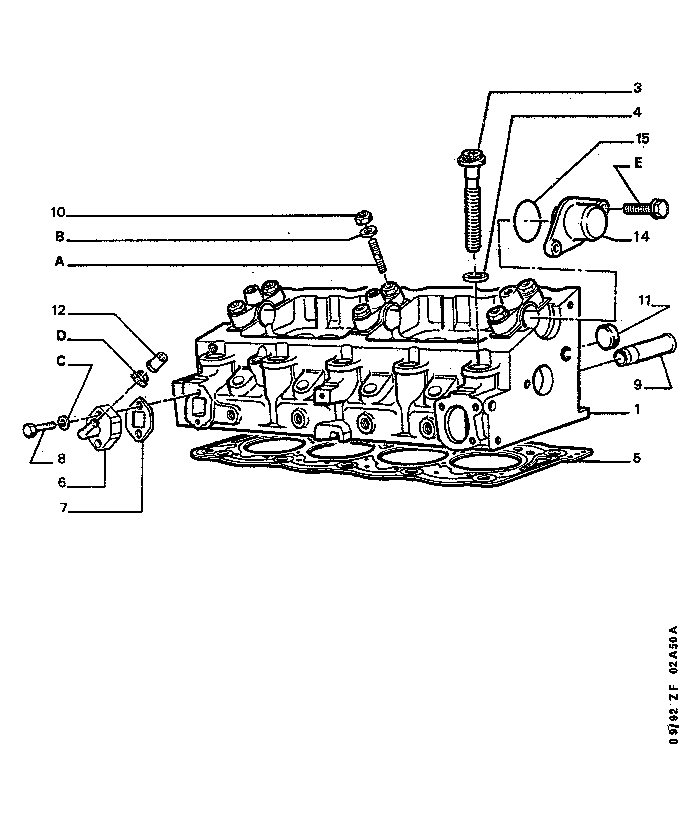

| GB | 405F 0 02A50A | CYLINDER-HEAD GUIDE AND VALVE SEAT |
|
A : + 0949 73 (4) UP TO 02/92 B : +09490 74 (4) UP TO 02/92 |
|||
| 01 | 0200 S0 | 01 |
CYLINDER-HEAD REPERE 161A-A9A - XUD7 |
 | |||
| 0200 N3 | 01 |
REPERE D9B-DJY |
|
| RP 0200 S3 | 01 |
- XUD9A |
|
| | |||
| 0200 N1 | 01 |
REPERE A8A-A8B-AJZ |
|
| RP 0200 S1 | 01 |
- XUD7TE |
|
| | |||
| 0200 S2 | 01 |
REPERE 162-D9A-DJZ - XUD9 ANTIPOL EGR |
|
| | |||
| 0200 P5 | 01 |
- XUD7 WITH VALVES AND CAMSHAFT LONG 0801C2 |
|
| | |||
| 0200 P4 | 01 |
- XUD7 WITH VALVES AND CAMSHAFT SHORT 0801E8 |
|
| | |||
| 0200 Q3 | 01 |
- XUD9A WITH VALVES AND CAMSHAFT LONG 0801C2 |
|
| | |||
| 0200 Q2 | 01 |
- XUD9A WITH VALVES AND CAMSHAFT SHORT 0801E8 |
|
| | |||
| 0200 P7 | 01 |
- XUD7TE WITH VALVES AND CAMSHAFT LONG 0801C9 |
|
| | |||
| 0200 P6 | 01 |
- XUD7TE WITH VALVES AND CAMSHAFT SHORT 0801F7 |
|
| | |||
| 0200 P9 | 01 |
- XUD9 ANTIPOL EGR WITH VALVES AND CAMSHAFT LONG 0801C2 |
|
| | |||
| 0200 P8 | 01 |
- XUD9 ANTIPOL EGR WITH VALVES AND CAMSHAFT SHORT 0801E8 |
|
| | |||
| 0200 R2 | 01 | CARCASE | |
| | |||
| 03 | 0204 65 | 10 |
CYL-HEAD SCREW 12X1,50-123 - XUD9A SEE IS Nø58 5-89 89MY - XUD9 ANTIPOL EGR SEE SERVICE INFO Nø58 5/89 89MY - XUD7 SEE SERVICE INFO Nø58 5/89 MY89 |
| | |||
| 0204 66 | 10 |
12X1,50-123
- XUD7TE SEE SERVICE INFO Nø58 5/89 89MY |
|
| | |||
| 04 | 0205 13 | 10 | SCREW WASHER 13X24-3 |
| | |||
| 05 | 0209 S0 | 01 |
CYL HEAD GASKET EP 1,36 - 1 CRAN A005 WITHOUT ASBESTOS - XUD7 1 NOTCH - SEE C |
| | |||
| 0209 S1 | 01 |
EP 1,40 - 2 CRANS A005 WITHOUT ASBESTOS - XUD7 2 NOTCH - SEE C |
|
| | |||
| 0209 S2 | 01 |
EP 1,44 - 3 CRANS A005 WITHOUT ASBESTOS - XUD7 3 NOTCH - SEE C |
|
| | |||
| 0209 S3 | 01 |
EP 1,48 - 4 CRANS A005 WITHOUT ASBESTOS - XUD7 4 NOTCH - SEE C |
|
| | |||
| 0209 S4 | 01 |
EP 1,52 - 5 CRANS A005 WITHOUT ASBESTOS - XUD7 5 NOTCH - SEE C |
|
| | |||
| 0209 Q0 | 01 |
EP 1,48 A005 WITHOUT ASBESTOS - XUD7TE 2 NOTCH |
|
| | |||
| 0209 Q1 | 01 |
EP 1,60 A005 WITHOUT ASBESTOS - XUD7TE 3 NOTCH |
|
| | |||
| 0209 S5 | 01 |
EP 1,36 - 1 CRAN REINZ A005 WITHOUT ASBESTOS - XUD9A 1 NOTCH - SEE C - XUD9 ANTIPOL EGR |
|
| | |||
| 0209 S6 | 01 |
EP 1,40 - 2 CRANS REINZ A005 WITHOUT ASBESTOS - XUD9A 2 NOTCH - SEE C - XUD9 ANTIPOL EGR |
|
| | |||
| 0209 S7 | 01 |
EP 1,44 - 3 CRANS REINZ A005 WITHOUT ASBESTOS - XUD9A 3 NOTCH - SEE C - XUD9 ANTIPOL EGR |
|
| | |||
| 0209 S8 | 01 |
EP 1,48 - 4 CRANS REINZ A005 WITHOUT ASBESTOS - XUD9A 4 NOTCH - SEE C - XUD9 ANTIPOL EGR |
|
| | |||
| 0209 S9 | 01 |
EP 1,52 - 5 CRANS
REINZ A005 WITHOUT ASBESTOS - XUD9A 5 NOTCH - SEE C - XUD9 ANTIPOL EGR |
|
| | |||
| 06 | 0234 29 | 01 |
CLDR LOCK PLATE DIAM 8 + FOR XUD7TE: 0371 02(1) + 6981 35(1), EXCEPT BOSCH MOUNTING |
| | |||
| 0234 20 | 01 |
- XUD7 - XUD9A - XUD9 ANTIPOL EGR |
|
| | |||
| 07 | 0236 32 | 01 |
CYL PLAT GASKET
A005 WITHOUT ASBESTOS FOR XUD7TE : 0371 02 (1) + 6981 35 (1) EXCEPT BOSCH |
| | |||
| 08 | 6921 27 | 02 |
CAPSCREW 7X100-35
- XUD9A - XUD9 ANTIPOL EGR - XUD7 |
| | |||
| 6913 A7 | 02 |
SOCKET SCREW 7X100-30
- XUD7TE |
|
| | |||
| 09 | 0245 44 | 01 | CYL-HEAD FITTG DIAM 23X85,5 |
| | |||
| 10 | 6936 51 | 06 | NUT WITH BASE 8X125-8-13 |
| | |||
| 11 | 0234 03 | 02 |
PLUG-CORE DIAM 27 |
| | |||
| 0233 10 | 02 |
DIAM 27,5 |
|
| | |||
| 0233 11 | 02 | DIAM 28,5 | |
| | |||
| 12 | 0311 09 | 01 | PLUG DIAM 14X24-25 |
| | |||
| 14 | 0234 36 | 01 | CLDR LOCK PLATE |
| | |||
| 15 | 0236 47 | 01 | RING-SEAL DIAM INT 46 EP 2 |
| | |||
| 9A | 6930 62 | 06 | STUD 8X125-16-20-16-16 |
| | |||
| 9B | 6947 78 | 06 | PLAIN WASHER 8X16-1,5 |
| | |||
| 9C | 6962 12 | 01 | FLEXIBLE WASHER 7X13,7-0,8 |
| | |||
| 9D | 6981 37 | 01 | METALLIC CLAMP 16 A 27 |
| | |||
| 9E | 6923 78 | 02 | SELF-TAP SCREWS 8X125-25 |
