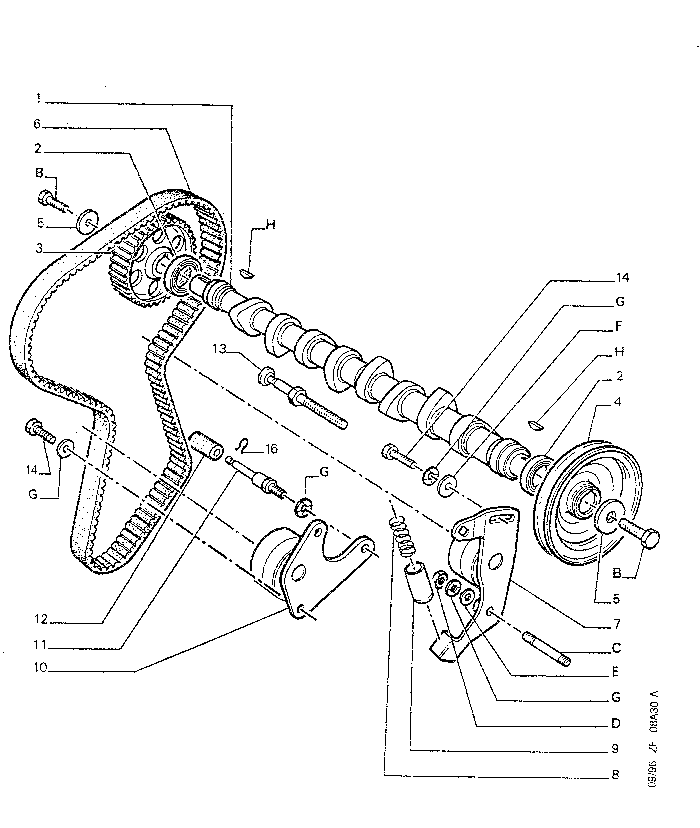

| GB | 405F 0 08A30A | CAMSHAFT -TIMING GEARS |
| 01 | 0801 C2 | 01 |
CAMSHAFT LONG - DIESEL XUD9A - DIESEL XUD9 ANTIPOL EGR - DIESEL XUD7 |
 | |||
| 0801 C9 | 01 |
- DIESEL XUD7TE |
|
| | |||
| 02 | 0236 14 | 02 | CAMSHAFT SEAL 35X50-8 |
| | |||
| 03 | 0805 30 | 01 | CAMSHAF GEAR 42 DTS |
| | |||
| 04 | 0812 08 | 01 | CAMSHAFT PULLEY |
| | |||
| 05 | 0812 09 | 02 | PLAIN WASHER 10,2X36X5 |
| | |||
| 06 | 0816 58 | 01 |
TIMING BELT 136 DENTS
DAYCO PIRELLI- |
| | |||
| 07 | 0829 11 | 01 | TENSION ROLLER |
| | |||
| 08 | 0827 15 | 01 | SPRING DIAM EXT 24,2LON70,4 |
| | |||
| 09 | 0827 16 | 01 | SPRING GUIDE |
| | |||
| 10 | 0830 02 | 01 | FIXED ROLLER |
| | |||
| 11 | 0830 07 | 01 | SPINDLE |
| | |||
| 12 | 0830 08 | 01 | BUSHING DIAM EXT 18-44,5 |
| | |||
| 13 | 0830 09 | 01 | SPINDLE |
| | |||
| 14 | 5804 08 | 02 |
CAPSCREW 8X125-25
- DIESEL XUD9A - DIESEL XUD9 ANTIPOL EGR - DIESEL XUD7 |
| | |||
| 6922 76 | 02 |
SELF-TAP SCREWS 8 X 125 - 30
- DIESEL XUD7TE |
|
| | |||
| 16 | 0830 05 | 01 | PIN |
| | |||
| 9B | 6917 65 | 01 | CAPSCREW 10X150-35 |
| | |||
| 9C | 6930 62 | 01 | STUD 8X125-16-20-16-16 |
| | |||
| 9D | 6932 38 | 01 | HEXAGONAL NUT 8X125-6,5 |
| | |||
| 9E | 6947 78 | 01 |
PLAIN WASHER 8X16-1,5 |
| | |||
| 9F | 6947 79 | 01 | 8 X 22 - 2,5 |
| | |||
| 9G | 6962 13 | 01 | FLEXIBLE WASHER 8X17-0,8 |
| | |||
| 9H | 6976 09 | 01 | WEDGE 15X5-6,5 |
