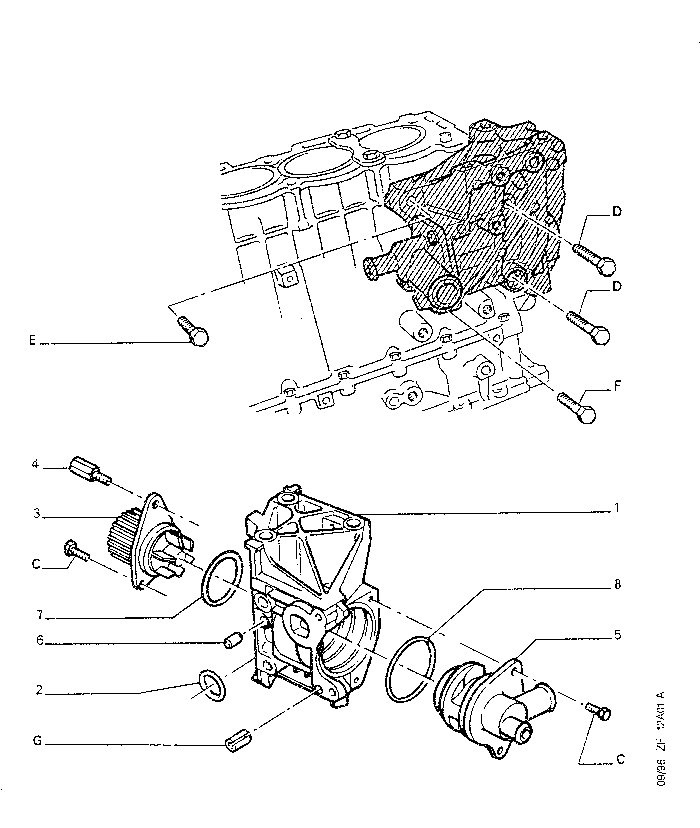

| GB | 405F 1 12A01A | WATER PUMP |
| 01 | 1204 34 | 01 |
PUMP BRACKET
+ UP TO M 62 353 : 0320 96 (1) |
 | |||
| 02 | 5933 60 | 01 | O-RING SEAL DIAM 36,5 |
| | |||
| 03 | 1207 23 | 01 | WATER PUMP |
| RP 1201 E3 | 01 | ||
| | |||
| 04 | 1207 19 | 01 | SCREW COLUMN DIAM 8X125 |
| | |||
| 05 | 1201 66 | 01 | WTR PUMP COVER |
| | |||
| 06 | 1203 10 | 01 | PIN 8X13 |
| | |||
| 07 | 1206 94 | 01 |
RING-SEAL DIAM 57 |
| | |||
| 08 | 1206 96 | 01 | DIAM 74 |
| | |||
| 9C | 6922 54 | 01 |
SELF-TAP SCREWS 6 X 100 - 20 |
| | |||
| 9D | 6923 14 | 02 |
10X150-100 |
| | |||
| 9E | 6923 15 | 01 |
8 X 125 - 50 |
| | |||
| 9F | 6923 16 | 01 | 8X125-35 |
| | |||
| 9G | 6968 51 | 02 | PIN 8X12 |
