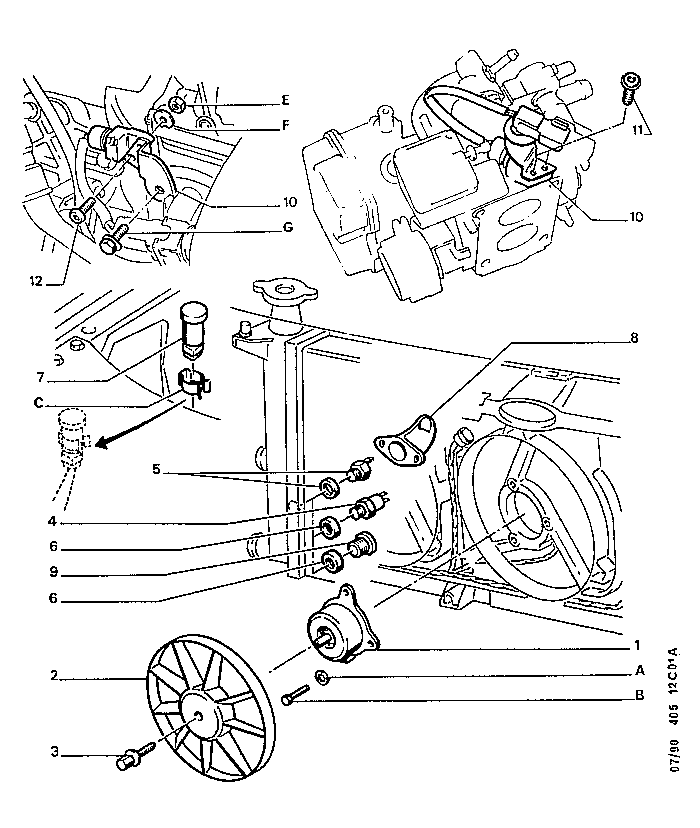

| GB | 405F 1 12C01A | FAN |
| 01 | 1253 15 | 01 |
MOTOR DRIVN FAN 200 W ECIA 699 |
 | |||
| 1253 52 | 01 |
200W
GATE * |
|
| | |||
| 02 | 1254 70 | 01 |
MOTOR DRIV FAN DIAM 305 GATE * |
| | |||
| 1254 50 | 01 |
9 PALES
ECIA * |
|
| | |||
| 03 | 1255 21 | 01 | SELF-TAP SCREWS 4X70-9 |
| | |||
| 04 | 1264 18 | 01 |
TEMPERAT SWITCH 93/88 - 97/92 DEG DOUBLE STAGE |
| | |||
| 1264 22 | 01 |
97/92 -101/96 DEG UP TO S 8921217 |
|
| | |||
| 1264 25 | 01 |
97/92-101/96 DEG |
|
| RP 1264 45 | 01 |
VERNET BE BLUE - AIR CONDITIONING SINCE S 8921218 |
|
| | |||
| 1264 44 | 01 |
97,5/92,5-92,5/87,5 ELBI V E B E - EXCEPT AIR CONDITIONING |
|
| | |||
| 05 | 1264 23 | 01 |
95/86 DEG |
| | |||
| 1264 21 | 01 |
97/92 DEG UP TO S 8921217 |
|
| | |||
| 1264 40 | 01 |
97/92 DEG
ELBI V E B E - EXCEPT AIR CONDITIONING SINCE S S8921218 |
|
| | |||
| 06 | 0243 18 | 01 |
SEAL 22,4X30-2
A005 WITHOUT ASBESTOS |
| | |||
| 07 | 1267 12 | 01 |
ADDIT RESISTOR O
- DIESEL - CARBURETTOR TU - CARBURETTOR XU UP TO S 8958530 - INJECTION |
| | |||
| 6524 12 | 01 |
RESISTANCE O,9 OHMS
- CARBURETTOR XU SINCE S 8958531 |
|
| | |||
| 08 | 1265 03 | 01 | CAP DIA 24 |
| | |||
| 09 | 0243 06 | 01 |
CYL-BLOCK PLUG 22X150
- AIR CONDITIONING |
| | |||
| 10 | 1264 28 | 01 |
TEPERATURSWITC 57 DEG
- CARBURETTOR XU EXCEPT AIR CONDITIONING SINCE S 8870628 |
| | |||
| 11 | 6912 82 | 02 |
SCREW CBLX RDL 4X70-16 UP TO S 8958530 |
| | |||
| 12 | 6912 87 | 02 |
4X70-20
SINCE S 8958531 |
| | |||
| 9A | 6917 92 | 01 | CAPSCREW 6X100-20 |
| | |||
| 9B | 6957 16 | 01 | SPRING WASHER 6X14,2-0,7 |
| | |||
| 9C | 6992 77 | 01 | CLIP DIAM 23 |
| | |||
| 9E | 6935 53 | 02 | SELF LOCKG NUT 10X150-9-17 |
| | |||
| 9F | 6946 02 | 01 | PLAIN WASHER 4X8-1 |
| | |||
| 9G | 6922 97 | 01 | SELF-TAP SCREWS 6X100-20 |
