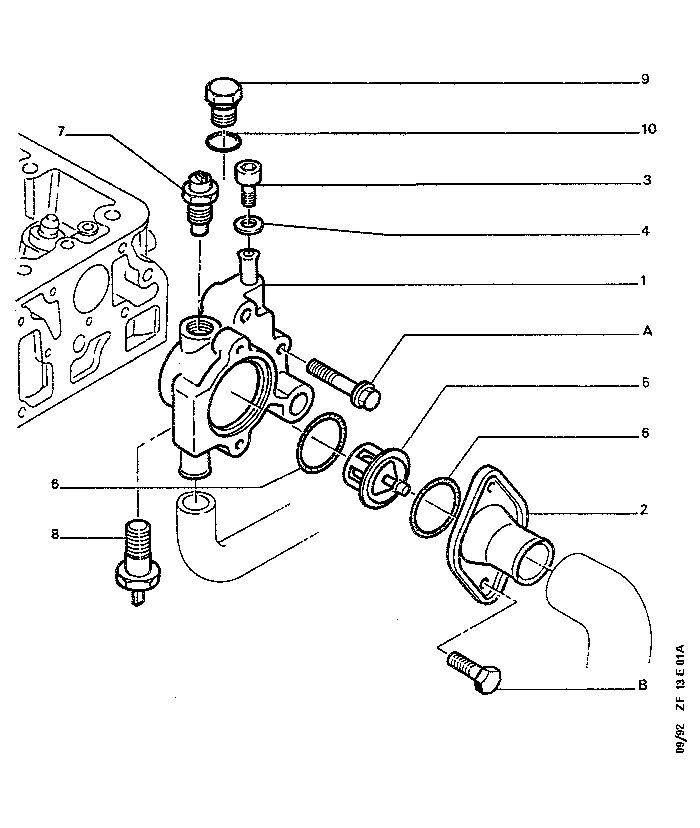

| GB | 405F 1 13E01A | WATER CONNECT ON RADIAT AND BOTTOM TANK |
| 01 | 1336 43 | 01 |
OUTLET TANK
WITH TEMPERATURE SWITCH ON HOUSING |
 | |||
| 1336 80 | 01 | ||
| | |||
| 02 | 1336 44 | 01 | WATER OUTLET |
| | |||
| 03 | 1306 29 | 01 | DRAIN SCREW |
| | |||
| 04 | 8249 18 | 01 | SEAL WASHER DIAM 6 |
| | |||
| 05 | 1338 44 | 01 |
THERMOSTAT 89 DEG
DAUPHIN THOMSON VERNET V1906 |
| | |||
| 06 | 1340 30 | 02 | THERMOST GASKET |
| | |||
| 07 | 0242 49 | 01 | TEMPERAT SWITCH 110ø-14X1,25 |
| | |||
| 08 | 1337 72 | 01 |
TEMPERATURE DIAM 14X1,25
RG RED |
| | |||
| 09 | 1336 32 | 01 | PLUG 14X125 |
| | |||
| 10 | 0164 19 | 01 | HOUSG PLUG SEAL 14X19 |
| | |||
| 9A | 6922 60 | 01 |
SELF-TAP SCREWS 6X100-45 |
| | |||
| 9B | 6922 54 | 01 | 6 X 100 - 20 |
