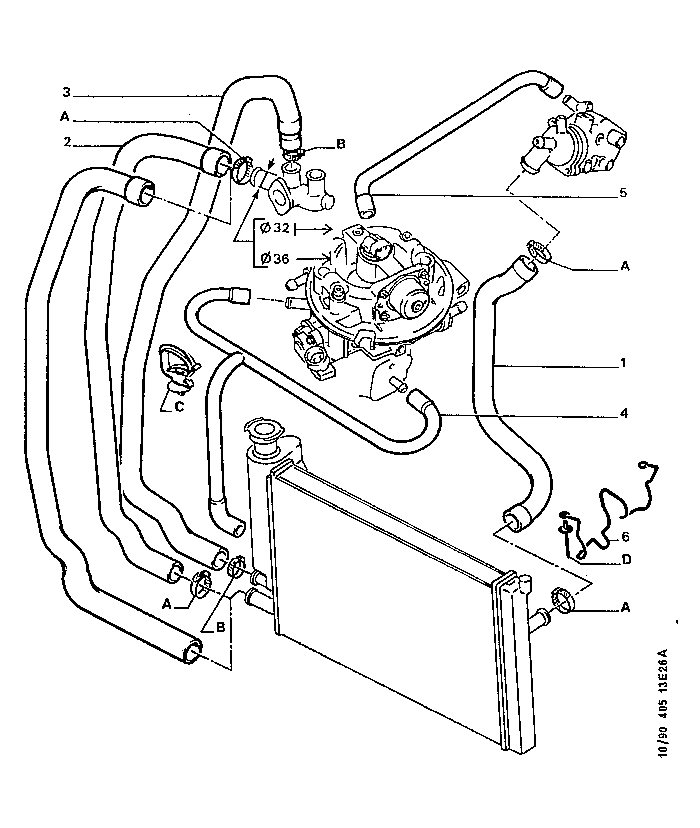

| GB | 405F 1 13E26A | WATER CONNECT ON RADIAT AND BOTTOM TANK |
| 01 | 1343 A1 | 01 | WTR INLET HOSE |
 | |||
| 02 | 1351 51 | 01 |
WTR OUTLET HOSE 5IAM 36 UP TO MOD 1991 |
| | |||
| 1351 A2 | 01 |
DIAM 32
SINCE MOD 1991 |
|
| | |||
| 03 | 1351 50 | 01 | WATER PIPE |
| | |||
| 04 | 1317 48 | 01 |
WATER HOSE
- XU9M |
| | |||
| 05 | 1317 35 | 01 | |
| | |||
| 06 | 1359 08 | 01 |
FLANGE
SINCE S 8861660 |
| | |||
| 9A | 6981 41 | 01 |
METALLIC CLAMP 40 A 60 |
| | |||
| 9B | 6981 38 | 01 | 20 A 35 |
| | |||
| 9C | 6995 10 | 01 | CLIP DIAM 15-22 |
| | |||
| 9D | 6973 27 | 02 |
RIVET 6,4X12,5
A006 ALUMINIUM |
