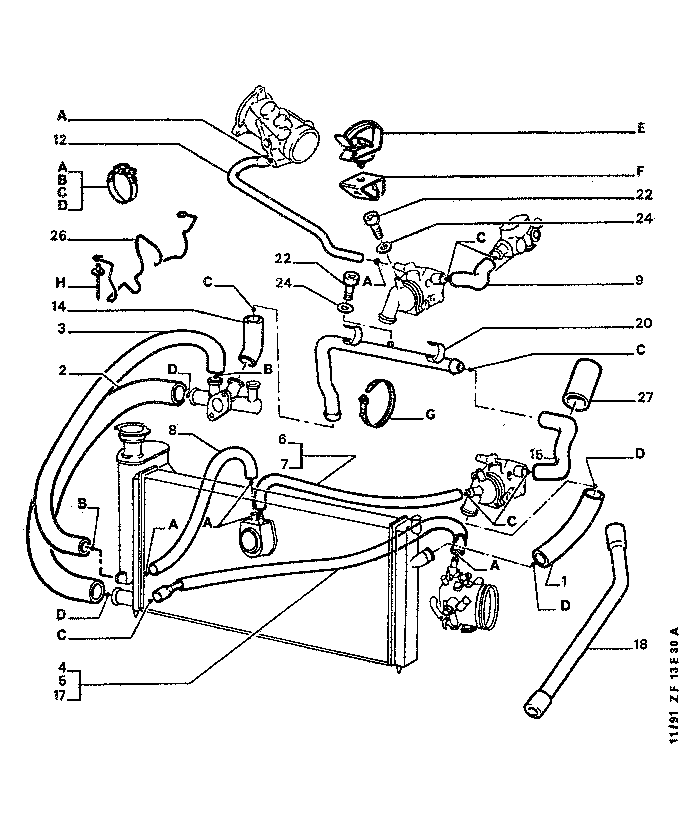

| GB | 405F 1 13E30A | RADIATOR WATER HOSE WATER TANK |
| 01 | 1343 A2 | 01 |
WTR INLET HOSE
- XU9J1 UP TO S 8483634 - XU9J2 - XU9JAZ UP TO S 8483634 |
 | |||
| 1343 E1 | 01 |
- XU9J1 SINCE S 8483635 - XU9JAZ SINCE S 8483635 |
|
| | |||
| 1343 A3 | 01 |
- XU9J4 |
|
| | |||
| 02 | 1351 51 | 01 |
WTR OUTLET HOSE 5IAM 36 UP TO S 70204675 |
| | |||
| 1351 A2 | 01 |
DIAM 32
SINCE S 70204676 |
|
| | |||
| 03 | 1351 50 | 01 |
WATER PIPE
- LEFT HAND DRIVE - RIGHT HAND DRIVE UP TO S 8601052 |
| | |||
| 1351 74 | 01 |
- RIGHT HAND DRIVE SINCE S 8601053 |
|
| | |||
| 04 | 1341 80 | 01 |
- XU9J2 |
| | |||
| 05 | 1351 53 | 01 |
WTR OUTLET HOSE
- XU9J4 |
| | |||
| 06 | 1307 J6 | 01 |
CASING UNION
- XU9J2 BVM HOT COUNTRIES - XU9JAZ BVM HOT COUNTRIES |
| | |||
| 07 | 1307 J7 | 01 |
- XU9J4 |
| | |||
| 08 | 1307 K2 | 01 | UNION |
| | |||
| 09 | 1351 04 | 01 |
WATER PIPE
- XU9J1 - XU9J2 - XU9JAZ |
| | |||
| 12 | 1415 A1 | 01 | WTR OUTLET HOSE |
| | |||
| 14 | 1351 61 | 01 |
- XU9J4 UP TO S 8300739 |
| | |||
| 1351 65 | 01 |
2 WAY UNION
- XU9J4 SINCE S 8300740 |
|
| | |||
| 15 | 1351 59 | 01 |
- XU9J4 |
| | |||
| 17 | 1341 42 | 01 |
WATER PIPE
- XU9J1 - XU9JAZ |
| | |||
| 18 | 1351 56 | 01 |
WTR OUTLET HOSE
- XU9J2 - XU9J4 |
| | |||
| 20 | 1351 58 | 01 |
WATER PIPE
- XU9J4 UP TO S 8300739 |
| | |||
| 1351 64 | 01 |
BYPASS PIPE
- XU9J4 SINCE S 8300740 |
|
| | |||
| 22 | 1306 29 | 01 | DRAIN SCREW |
| | |||
| 24 | 8249 18 | 01 | SEAL WASHER DIAM 6 |
| | |||
| 26 | 1359 08 | 01 |
FLANGE
SINCE S 8861660 |
| | |||
| 27 | 1351 E2 | 01 |
SHEATH
- XU9J4 |
| | |||
| 9A | 6981 37 | 01 |
METALLIC CLAMP 16 A 27 |
| | |||
| 9B | 6981 38 | 01 |
20 A 35 |
| | |||
| 9C | 6981 39 | 01 |
25 A 47 |
| | |||
| 9D | 6981 41 | 01 | 40 A 60 |
| | |||
| 9E | 6995 10 | 01 |
CLIP DIAM 15-22 |
| | |||
| 9F | 6992 A8 | 01 | 1,5-3--6,5 |
| | |||
| 9G | 6980 47 | 01 | STRAP LONG 171 LARG 9 |
| | |||
| 9H | 6973 27 | 02 |
RIVET 6,4X12,5
A006 ALUMINIUM |
