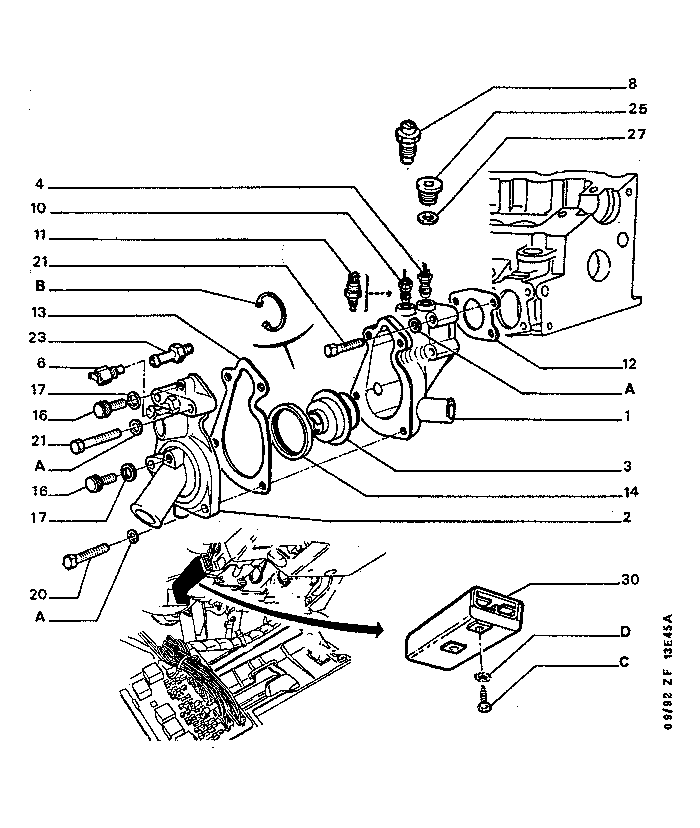

| GB | 405F 1 13E45A | WATER CONNECT ON RADIAT AND BOTTOM TANK |
UP TO S 70514984
| 01 | 1336 41 | 01 | OUTLET TANK |
 | |||
| 02 | 1336 58 | 01 | HOUSING COVER |
| | |||
| 03 | 1338 25 | 01 |
THERMOSTAT 83 DEG
VERNET V1756C |
| | |||
| 04 | 0242 49 | 01 |
TEMPERAT SWITCH 110ø-14X1,25 - EXCEPT HOT COUNTRIES |
| | |||
| 06 | 0242 38 | 01 |
48ø - XUD9 ANTIPOL EGR |
| | |||
| 08 | 0242 72 | 01 |
118ø
JAEGER - HOT COUNTRIES |
| | |||
| 10 | 1337 72 | 01 |
TEMPERATURE DIAM 14X1,25
RG RED |
| | |||
| 11 | 0242 58 | 01 |
TEMPERAT. PROBE
ELBI - AIR CONDITIONING |
| | |||
| 12 | 1339 62 | 01 |
HOUSING SEAL
A005 WITHOUT ASBESTOS |
| | |||
| 13 | 1339 73 | 01 |
COVER GASKET
A005 WITHOUT ASBESTOS |
| | |||
| 14 | 1339 66 | 01 | THERMOST GASKET |
| | |||
| 16 | 1306 29 | 02 | DRAIN SCREW |
| | |||
| 17 | 1339 78 | 02 | DRN SCR GASKET 10X6,2 |
| | |||
| 20 | 6921 27 | 02 |
CAPSCREW 7X100-35
- XUD9A - XUD9 ANTIPOL EGR |
| | |||
| 6922 70 | 02 |
SELF-TAP SCREWS 7X100-35
- XUD7TE - XUD7 |
|
| | |||
| 21 | 6921 29 | 05 |
CAPSCREW 7X100-45
- XUD9A - XUD9 ANTIPOL EGR |
| | |||
| 6922 30 | 05 |
SELF-TAP SCREWS 7X100-48
- XUD7TE - XUD7 |
|
| | |||
| 23 | 1355 07 | 01 |
SOCKET TOOL 14X125 - XUD9A - XUD9 ANTIPOL EGR - XUD7TE |
| | |||
| 0345 03 | 01 |
13X15-42
- XUD7 |
|
| | |||
| 25 | 0243 06 | 01 |
CYL-BLOCK PLUG 22X150
- HOT COUNTRIES |
| | |||
| 27 | 0243 18 | 01 |
SEAL 22,4X30-2
A005 WITHOUT ASBESTOS - HOT COUNTRIES |
| | |||
| 30 | 1338 08 | 01 |
REGULATOR BOX
- AIR CONDITIONING UP TO S 8424517 - XUD7TE AIR CONDITIONING SINCE S 8424518 |
| | |||
| 1338 22 | 01 |
- XUD7 SINCE S 8424518 - XUD9 SINCE S 8424518 - XUD7TE EXCEPT AIR CONDITIONING SINCE S 8424518 |
|
| | |||
| 9A | 6962 12 | 01 | FLEXIBLE WASHER 7X13,7-0,8 |
| | |||
| 9B | 6978 13 | 01 | STOP-RING 72X76,5-2,5 |
| | |||
| 9C | 6911 02 | 01 | SCREW CBLX 3,5-13 |
| | |||
| 9D | 6958 54 | 01 | SPRING WASHER 4,2X8-0,5 |
