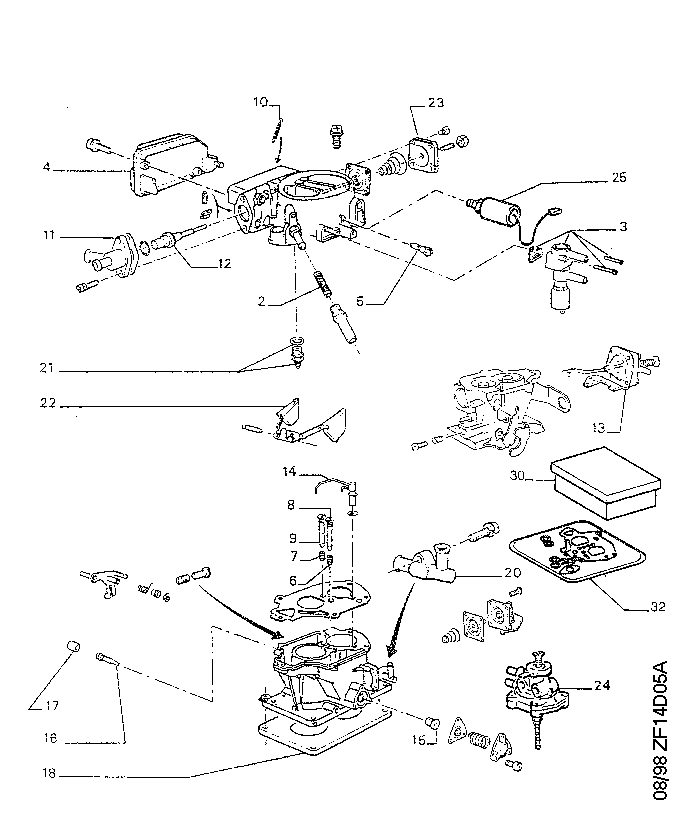

| GB | 405F 1 14D05A | CARBURATTOR DUAL BARREL DETAIL |
CARBURETTOR XU92C BVM
| 01 | 1402 G1 | 01 |
FLOAT CHB COVER
SOLEX 34 34Z1/447 |
 | |||
| 02 | 1403 B4 | 01 | PETROL FILTER |
| | |||
| 03 | 1403 C3 | 01 |
ELECTRO-VALVE
SOLEX |
| | |||
| 04 | 1403 C9 | 01 |
CARB CAPACITY
UP TO MOD 1990 |
| | |||
| 1403 F1 | 01 |
SINCE MOD 1990 |
|
| | |||
| 05 | 1404 72 | 01 | PILOT JET 45 |
| | |||
| 06 | 1405 01 | 01 | MAIN JET |
| | |||
| 07 | 1411 73 | 01 | |
| | |||
| 08 | 1405 F3 | 01 |
CORRECTION JET
FIRST SIZE |
| | |||
| 09 | 1405 B8 | 01 |
SOLEX SECOND SIZE REP 462 |
| | |||
| 1405 F5 | 01 |
SOLEX SECOND SIZE REP 447 |
|
| | |||
| 10 | 1403 E6 | 01 | FLAP SPRING |
| | |||
| 11 | 1407 C5 | 01 |
CHOKE CONT UNIT
SOLEX |
| | |||
| 12 | 1407 C0 | 01 |
VACUUM UNIT
SOLEX |
| | |||
| 13 | 1408 E3 | 01 | OPENING DEV ASY |
| | |||
| 14 | 1409 C7 | 01 | PUMP INJECTOR |
| | |||
| 15 | 1410 A1 | 01 | ENRICHER GAUGE |
| | |||
| 16 | 1412 E2 | 01 | MIXTURE SCREW |
| | |||
| 17 | 1412 C6 | 01 | SCREW PLUG |
| | |||
| 18 | 1416 F2 | 01 | SPACER EP 3,5 |
| | |||
| 20 | 1433 50 | 01 |
REHEATING UNIT
SOLEX |
| | |||
| 21 | 1433 55 | 01 | CARB NEEDL VALV |
| | |||
| 22 | 1433 56 | 01 | CARBURETR FLOAT |
| | |||
| 23 | 1406 C7 | 01 | CARBURETT.COVER |
| | |||
| 24 | 1408 E3 | 01 |
OPENING DEV ASY
- AIR CONDITIONING |
| | |||
| 25 | 1404 98 | 01 |
PILOT CUT-OUT
SOLEX |
| | |||
| 30 | 1417 N5 | 01 | CARB REPAIR KIT |
| | |||
| 32 | 1417 N4 | 01 | CARB GASKET KIT |
