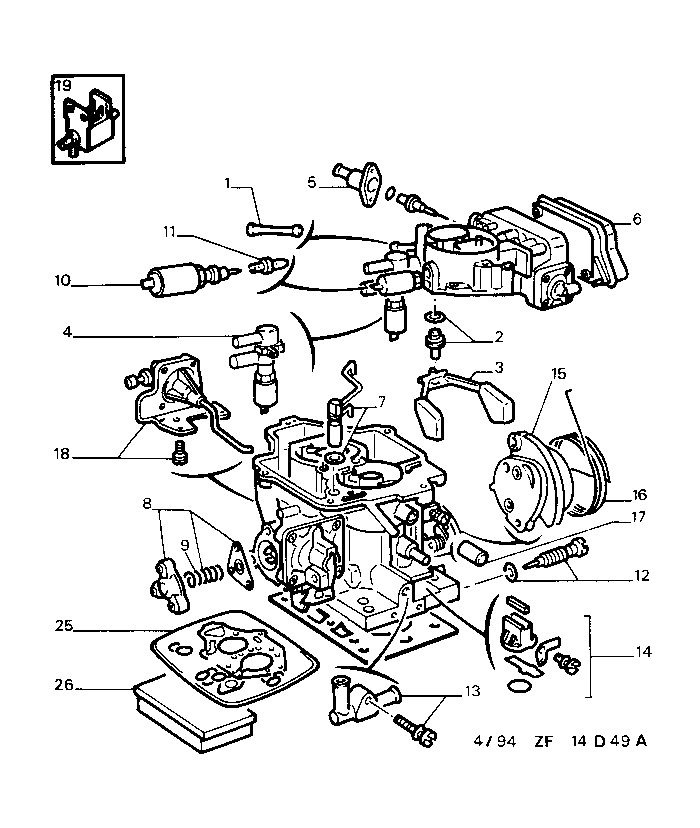

| GB | 405F 1 14D49A | CARBURATTOR DUAL BARREL DETAIL |
CARBURETTOR XU52C XU92C EXCEPT
| 01 | 1403 B4 | 01 | PETROL FILTER |
 | |||
| 02 | 1433 55 | 01 | CARB NEEDL VALV |
| | |||
| 03 | 1433 56 | 01 | CARBURETR FLOAT |
| | |||
| 04 | 1403 C7 | 01 |
ELECTRO-VALVE
ASSEMBLY |
| | |||
| 05 | 1407 C5 | 01 |
CHOKE CONT UNIT
SOLEX |
| | |||
| 06 | 1403 C9 | 01 | CARB CAPACITY |
| | |||
| 07 | 1409 C3 | 01 | PUMP INJECTOR |
| | |||
| 08 | 1410 A7 | 01 | ENRICHENER ASSY ENS |
| | |||
| 09 | 1433 A7 | 01 | SPRING |
| | |||
| 10 | 1404 98 | 01 |
PILOT CUT-OUT
SOLEX |
| | |||
| 11 | 1410 C0 | 01 |
SOCKET TOOL 41 - 45 |
| | |||
| 1410 A9 | 01 | 46 - 50 | |
| | |||
| 12 | 1412 E2 | 01 | MIXTURE SCREW |
| | |||
| 13 | 1433 50 | 01 |
REHEATING UNIT
SOLEX |
| | |||
| 14 | 1418 29 | 01 | CARB.REHEATER |
| | |||
| 15 | 1650 35 | 01 | ACCEL CTRL DRUM |
| RP 1650 44 | 01 |
SOLEX |
|
| | |||
| 16 | 1654 71 | 01 | RETURN SPRING |
| | |||
| 17 | 1624 60 | 01 | PLUG 4,3X9,3-20 |
| | |||
| 18 | 1408 E3 | 01 |
OPENING DEV ASY
- AIR CONDITIONING |
| | |||
| 19 | 1628 L9 | 01 |
ELECTRO VALVE
EATON - AIR CONDITIONING CONNECTOR BLUE |
| | |||
| 1621 60 | 01 | ||
| RP 1621 89 | 01 |
- AIR CONDITIONING CONNECTOR BLACK |
|
| | |||
| 25 | 1417 N4 | 01 | CARB GASKET KIT |
| | |||
| 26 | 1417 N5 | 01 | CARB REPAIR KIT |
