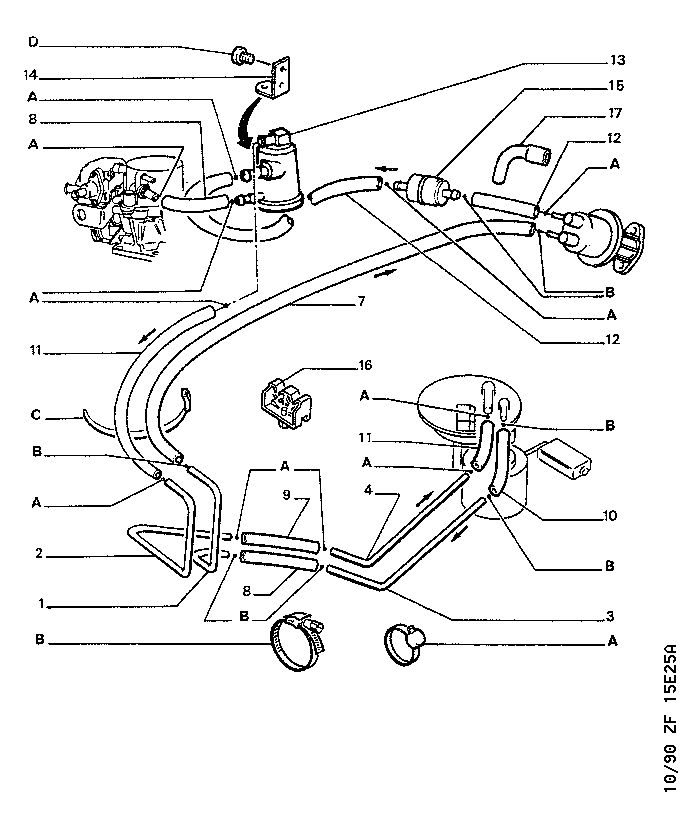

| GB | 405F 1 15E25A | FUEL PIPING |
| 01 | 1579 51 | 01 |
FUEL FEED PIPE DIAM 6,5 X 8 |
 | |||
| 02 | 1579 52 | 01 | DIAM 4,5 X 6 |
| | |||
| 03 | 1579 F3 | 01 | RETURN PIPE |
| | |||
| 04 | 1579 53 | 01 | FUEL FEED PIPE |
| | |||
| 07 | 1573 02 | 01 |
RUBBER HOSE DIAM 7X14,5 CL |
| | |||
| 08 | 1573 A2 | 01 |
DIAM 7X13 CL |
| | |||
| 10 | 1573 38 | 01 |
7X15-9X17-850 SINCE S 70490559 ASS WITH PUMP IN PETROL TANK |
| | |||
| 1503 39 | 01 |
5X12-7X14-1220 CL UP TO S 70490558 |
|
| | |||
| 1573 77 | 01 |
UP TO S 70650230 ASS WITHOUT PUMP IN PETROL TANK |
|
| | |||
| 11 | 1573 NY | 01 |
FUEL FEED PIPE CL 5X13-5000 |
| | |||
| 12 | 1573 41 | 02 | CL |
| | |||
| 13 | 1563 94 | 01 | DEGASSING TANK |
| | |||
| 14 | 1563 98 | 01 | CORNER-PLATE 34X43-LG18 |
| | |||
| 15 | 1567 20 | 01 | FUEL FILTER GAMME PTB |
| | |||
| 16 | 4018 42 | 07 | CLIP 35X20-10-10 |
| | |||
| 17 | 1573 C6 | 01 |
FUEL FEED PIPE
SINCE S 70086858 |
| | |||
| 9A | 6981 E1 | 17 |
METALLIC CLAMP 8 A 16 LARG 5 |
| | |||
| 9B | 6981 36 | 01 | 12 A 20 |
| | |||
| 9C | 6980 47 | 01 | STRAP LONG 171 LARG 9 |
| | |||
| 9D | 6924 E2 | 02 | SCREW CBLX 4-10 |
