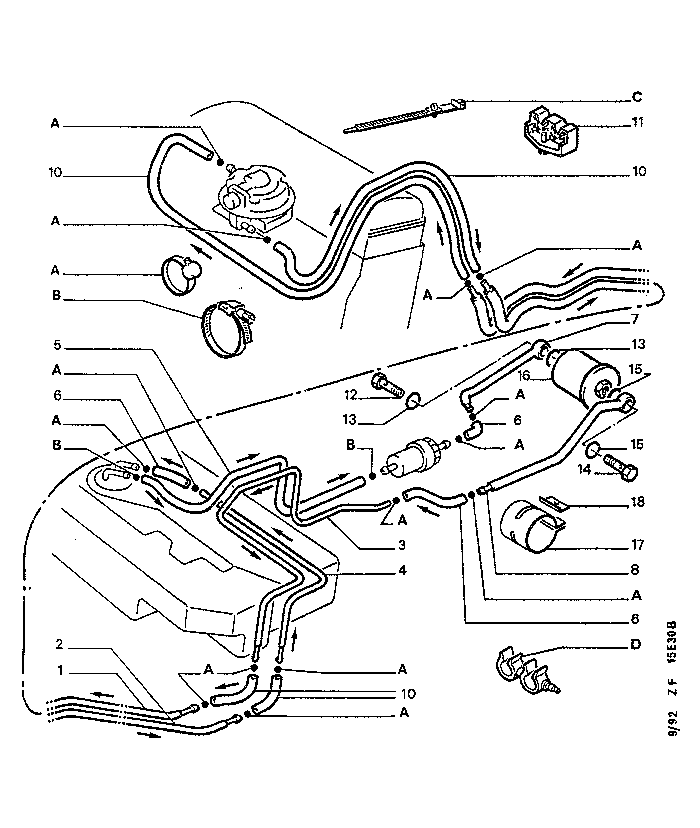

| GB | 405F 1 15E30B | FUEL PIPING |
SINCE S 8870628
| 01 | 1579 54 | 01 |
FUEL FEED PIPE 6 5X8 |
 | |||
| 02 | 1579 56 | 01 |
6 5X8 |
| | |||
| 03 | 1579 61 | 01 | |
| | |||
| 04 | 1579 F3 | 01 | RETURN PIPE |
| | |||
| 05 | 1573 NX | 01 | RUBBER HOSE CL 11X18-5000 |
| | |||
| 06 | 1573 NZ | 01 | FUEL FEED PIPE CL 7X13-5000 |
| | |||
| 07 | 1573 C3 | 01 | ADJUSTABL UNION |
| | |||
| 08 | 1573 C4 | 01 | |
| | |||
| 10 | 1573 A2 | 02 | RUBBER HOSE DIAM 7X13 CL |
| | |||
| 11 | 4018 42 | 07 | CLIP 35X20-10-10 |
| | |||
| 12 | 1563 53 | 01 | UNION SCREW |
| | |||
| 13 | 1562 45 | 02 | FUEL PIPE SEAL 14,1X18-1 |
| | |||
| 14 | 1563 49 | 01 | UNION SCREW |
| | |||
| 15 | 1562 44 | 02 | FUEL PIPE SEAL |
| | |||
| 16 | 1567 11 | 01 |
FUEL FILTER
BOSCH PURFLUX- |
| | |||
| 17 | 1567 70 | 01 | FILTER STRAP |
| | |||
| 18 | 1567 69 | 01 | FILTER BRACKET |
| | |||
| 9A | 6981 E1 | 01 |
METALLIC CLAMP 8 A 16 LARG 5 |
| | |||
| 9B | 6981 36 | 01 | 12 A 20 |
| | |||
| 9C | 6980 47 | 01 | STRAP LONG 171 LARG 9 |
| | |||
| 9D | 6992 H6 | 01 | CLIP DIAM 12--15-16 |
