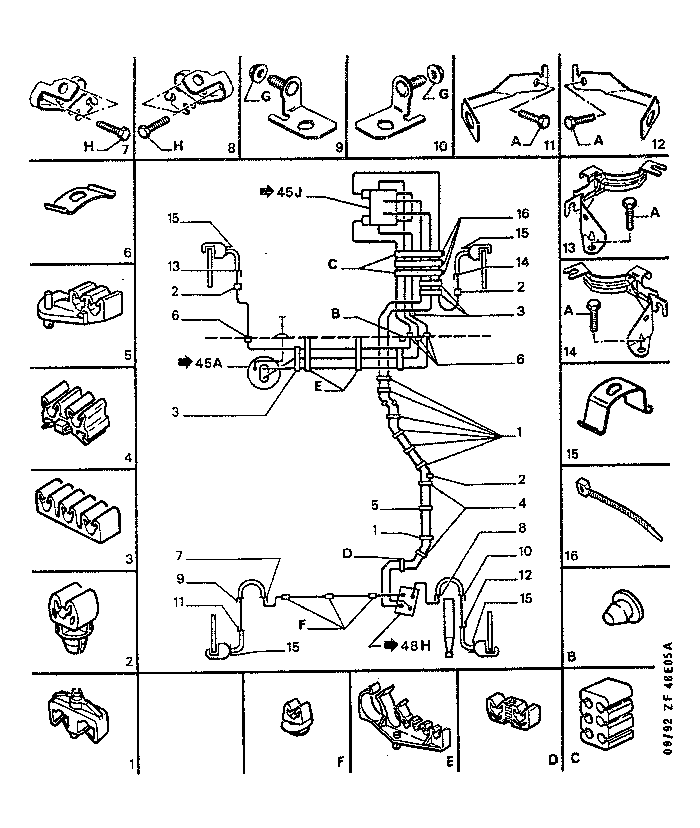

| GB | 405F 4 48E05A | BRAKE PIPING ABS OPTIONAL |
| 01 | 4814 39 | 07 | SUPPORT CLIP DIAM 4,8 |
 | |||
| 02 | 4814 40 | 03 | LINE BRACKET 1 DIAM 4 |
| | |||
| 03 | 4814 46 | 04 |
CLIP 3 DIAM 4,8 |
| | |||
| 04 | 4814 66 | 02 |
DIAM 4,75 |
| | |||
| 05 | 4814 80 | 01 | 4,8 |
| | |||
| 06 | 4814 83 | 04 | MOUNTING CLAMP |
| | |||
| 07 | 4814 86 | 01 |
PIPE BRACKET LEFT |
| | |||
| 08 | 4814 87 | 01 |
RIGHT |
| | |||
| 09 | 4814 88 | 01 |
LEFT |
| | |||
| 10 | 4814 89 | 01 |
RIGHT |
| | |||
| 11 | 4814 91 | 01 |
LEFT |
| | |||
| 12 | 4814 90 | 01 |
RIGHT |
| | |||
| 13 | 4814 92 | 01 |
LEFT UP TO S 70206521 |
| | |||
| 4804 17 | 01 |
LEFT SINCE S 70206522 |
|
| | |||
| 14 | 4814 93 | 01 |
RIGHT UP TO S 70206521 |
| | |||
| 4804 18 | 01 |
RIGHT
SINCE S 70206522 |
|
| | |||
| 15 | 4814 94 | 06 | MOUNTING CLAMP |
| | |||
| 16 | 6980 28 | 03 | STRAP L=275 LARG=5 |
| | |||
| 9A | 6922 22 | 01 | SELF-TAP SCREWS 8X125-20 |
| | |||
| 9B | 6983 03 | 01 |
PLUG DIAM 10,5 - 16
C001 RUBBER |
| | |||
| 9C | 6995 32 | 01 | CLIP |
| | |||
| 9D | 6995 30 | 01 |
5-30X12--14 |
| | |||
| 9E | 6995 31 | 01 | |
| | |||
| 9F | 6992 P9 | 01 | |
| | |||
| 9G | 6935 09 | 01 | NUT WITH BASE 8 X 125 - 7,3 - 13 |
| | |||
| 9H | 6923 78 | 01 | SELF-TAP SCREWS 8X125-25 |
