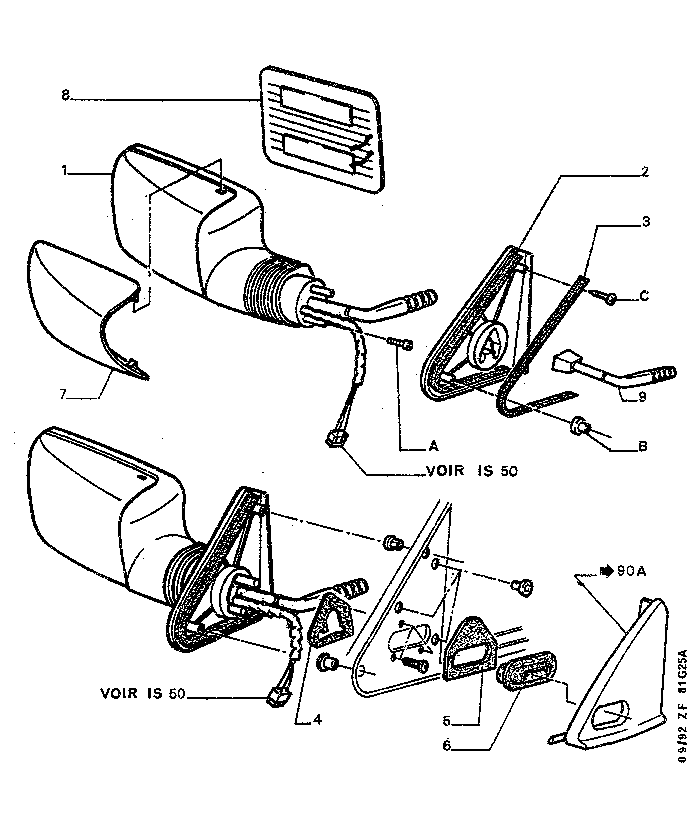

| GB | 405F 8 81G25A | EXTERIOR REAR VIEW MIRROR |
|
A) UP TO MOD 1990 ORDER IN ADDITION 1 MLDG GUSSET INT 9015 66 OR 9015 68 OR 9015 70 FOLLOWING COLOUR B) UP TO MOD 1990 ORDER IN ADDITION 1 MLDG GUSSET INT 9015 65 OR 9015 67 OR 9015 69 FOLLOWING COLOUR |
|||
| 01 | 8148 P2 | 01 |
EXT VIEW MIRROR RIGHT MOUNTING WITH MOULDING COLOUR TRIM SEE A |
 | |||
| 8148 P7 | 01 |
LEFT
UP TO MOD 1990 MOUNTING WITH MOULDING COLOUR TRIM, SEE B |
|
| | |||
| 02 | 8155 23 | 01 |
VIEW MIRR BASE LEFT - WITHOUT STAINLESS RING UP TO MOD 1990 |
| | |||
| 8155 24 | 01 |
RIGHT - WITHOUT STAINLESS RING UP TO MOD 1990 |
|
| | |||
| 8155 25 | 01 |
LEFT - WITH STAINLESS RING UP TO MOD 1990 |
|
| | |||
| 8155 26 | 01 |
RIGHT
- WITH STAINLESS RING UP TO MOD 1990 |
|
| | |||
| 03 | 8156 42 | 01 | VIEW MIRR STRIP |
| | |||
| 04 | 8156 37 | 01 |
UP TO MOD 1990 |
| | |||
| 05 | 8156 36 | 01 |
UP TO MOD 1990 |
| | |||
| 06 | 8156 38 NFP |
01 |
CONTROL BOOT
UP TO MOD 1990 |
| | |||
| 07 | 8152 03 | 01 |
MIRROR MOULDING LEFT UP TO MOD 1990 PAINT TRIM COVER |
| | |||
| 8152 04 | 01 |
RIGHT
UP TO MOD 1990 PAINT TRIM COVER |
|
| | |||
| 08 | 8151 62 | 01 | MIRROR GLASS LEFT |
| | |||
| 8151 63 | 01 | RR VIEW MIRROR RIGHT | |
| | |||
| 09 | 8154 07 | 01 |
CONTROL LEVER LEFT CIPA - BRITAX - UP TO MOD 1990 |
| | |||
| 8154 08 | 01 |
RIGHT
CIPA - BRITAX - UP TO MOD 1990 |
|
| | |||
| 9A | 6920 01 | 01 |
SCREW RLX 4X70-12
UP TO MOD 1990 |
| | |||
| 9B | 6991 54 | 01 |
RETAINING CLIP 10X7,5-7,5
UP TO MOD 1990 |
| | |||
| 9C | 6924 09 | 01 |
MATERIAL SCREW 4,5 X 15
UP TO MOD 1990 |
