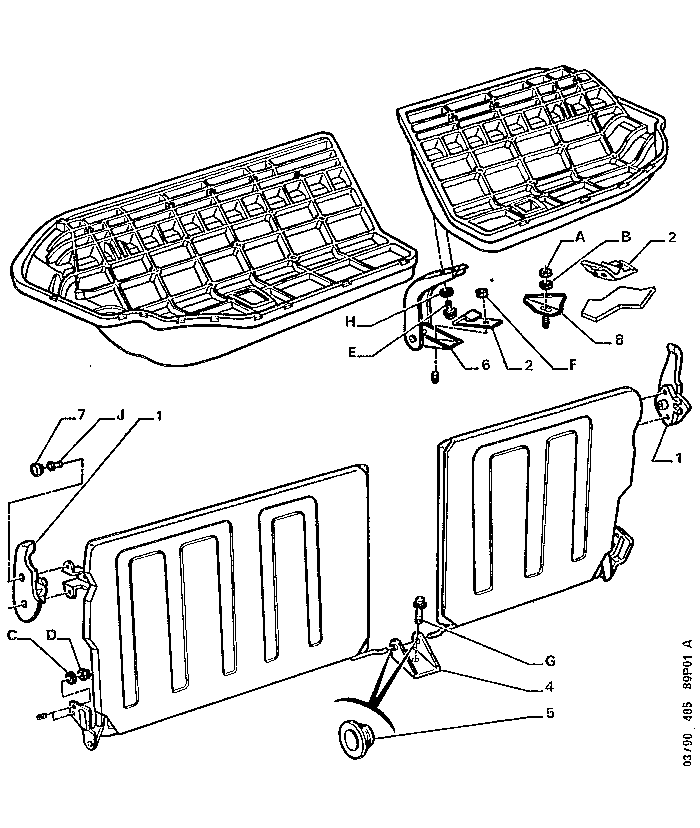

| GB | 405F 8 89P01A | REAR SEAT FIXING |
| 01 | 8957 F0 | 01 |
SQUAB LOCKING LEFT |
 | |||
| 8957 F1 | 01 | RIGHT | |
| | |||
| 02 | 8957 F9 | 01 |
REST STOP LEFT |
| | |||
| 8957 G0 | 01 | RIGHT | |
| | |||
| 04 | 8957 F4 | 01 | MOUNTG BRACKET |
| | |||
| 05 | 8957 F6 | 02 | HINGE BUSH |
| RP 8957 FF | 01 | ||
| | |||
| 06 | 8957 F7 | 04 | HINGE |
| | |||
| 07 | 8957 F8 | 04 | SCREW COVER |
| | |||
| 08 | 8957 H1 | 01 | BENCH BUFFER |
| | |||
| 9A | 6934 04 | 01 | HEXAGONAL NUT 6X100-3 |
| | |||
| 9B | 6958 56 | 01 |
SPRING WASHER 6X11,3-0,7 |
| RP 6962 94 | 01 | ||
| | |||
| 9C | 6955 26 | 01 | 6X11-0,6 |
| | |||
| 9D | 6938 23 | 01 | CAP NUT 6X100-10-13 |
| | |||
| 9E | 6921 38 | 01 | CAPSCREW 5X80-12 |
| | |||
| 9F | 6935 08 | 01 | NUT WITH BASE 6X100-5-12,2 |
| | |||
| 9G | 6923 78 | 01 | SELF-TAP SCREWS 8X125-25 |
| | |||
| 9H | 6957 40 | 01 | SPRING WASHER 5X12,2-0,8 |
| | |||
| 9J | 6925 37 | 01 | SCREW CBLX RDL SX100-16 |
