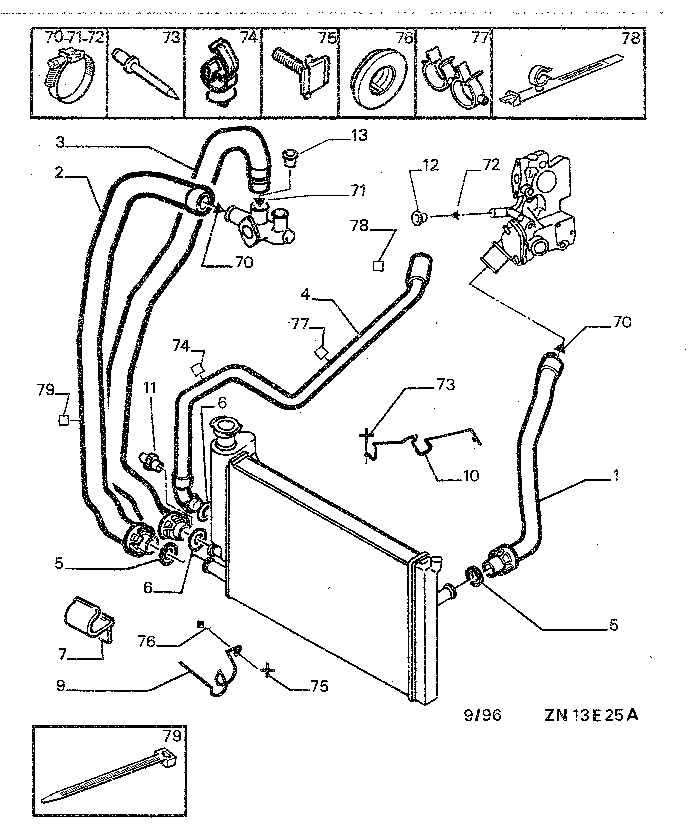

| GB | 405N 1 13E25A | WATER CONNECT ON RADIAT AND BOTTOMTANK |
| 01 | 1343 H8 | 01 | WTR INLET HOSE |
 | |||
| 02 | 1351 F3 | 01 | WTR OUTLET HOSE |
| | |||
| 03 | 1351 G2 | 01 |
WATER PIPE
UP TO O 7174 |
| | |||
| 04 | 1341 64 | 01 |
UP TO 07/1994 |
| | |||
| 1341 95 | 01 |
SINCE 07/1994 UP TO O 7174 |
|
| | |||
| 05 | 1307 T4 | 02 | END-PIEC GASKET DIAM 32X42 |
| | |||
| 06 | 1339 82 | 02 | RING-SEAL 12X2 |
| | |||
| 07 | 1319 33 | 02 |
CLIP
UP TO S 70950944 01 SINCE S 70950945 |
| | |||
| 09 | 1359 10 | 01 | FLANGE |
| | |||
| 10 | 1359 11 | 01 |
UP TO O 7174 |
| | |||
| 11 | 1355 12 | 02 |
TIP
SINCE O 7175 |
| | |||
| 12 | 1355 10 | 01 |
PLUG
SINCE O 7175 |
| | |||
| 13 | 1355 13 | 01 |
DIAM 22
SINCE O 7175 |
| | |||
| 70 | 6981 40 | 02 |
METALLIC CLAMP 32 A 50 |
| | |||
| 71 | 6981 38 | 01 |
20 A 35 |
| | |||
| 72 | 6981 36 | 01 | 12 A 20 |
| | |||
| 73 | 6973 27 | 02 |
RIVET 6,4X12,5
A006 ALUMINIUM UP TO O 7174 |
| | |||
| 74 | 6992 G7 | 02 | CLIP DIAM 11-20 |
| RP 6992 H3 | 01 |
UP TO O 7174 |
|
| | |||
| 75 | 6984 06 | 01 | CAGE SCREW 6X100-12 |
| | |||
| 76 | 6934 27 | 01 | WASHER-NUT 6X100-6,25-10 |
| | |||
| 77 | 6994 73 | 01 | SWIVEL CLIP DIAM 13,5 |
| | |||
| 78 | 6995 E4 | 01 |
STRAP L=342 LARG=7 UP TO O 7174 |
| | |||
| 79 | 6980 32 | 01 |
L=427 LARG=8
SINCE S 70950945 |
