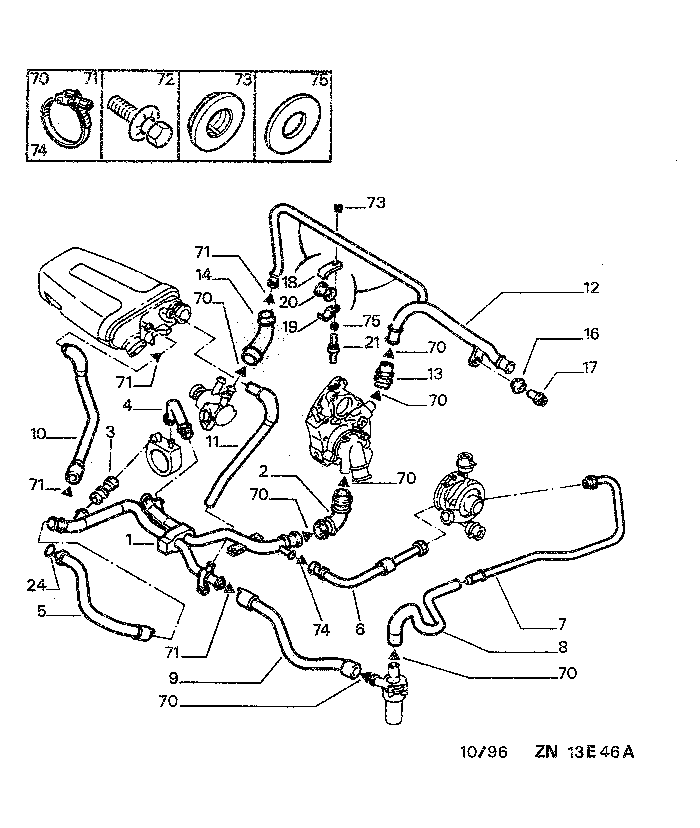

GB   405N 1 13E46A RADIATOR WATER HOSE WATER TANK

TURBO INJECTION XU10J4TE

01 1341 69 01 WATER PIPE 02 1341 70 01 03 1307 W6 01 04 1307 X2 01 05 1307 W7 01 06 1341 73 01 07 1341 74 01 INTERMED.PIPE 08 1341 72 01 WATER PIPE 09 1341 71 01 10 1351 H0 01 11 1341 68 01 12 1351 H9 01 BYPASS PIPE 13 1341 78 01 WATER PIPE 14 1341 66 01 16 1727 21 01 RUBBER GROMMET UP TO S 70980931 17 1319 44 01 NUT WITH BASE 6X100 UP TO S 70980931 18 1319 40 01 FLANGE 19 1319 41 01 20 1319 35 01 GROMMET 21 0237 06 01 SCREW COLUMN 6X100 I16 L21 24 1307 T5 01 END-PIEC GASKET DIAM 18X28 70 6981 38 04 METALLIC CLAMP 20 A 35 71 6981 37 05 16 A 27 72 6922 73 01 SELF-TAP SCREWS 6X100-12 73 6936 33 01 NUT WITH BASE 6X100-8-13 74 6981 36 01 METALLIC CLAMP 12 A 20 75 6947 80 02 PLAIN WASHER 6X18-2 UP TO 07/1993
