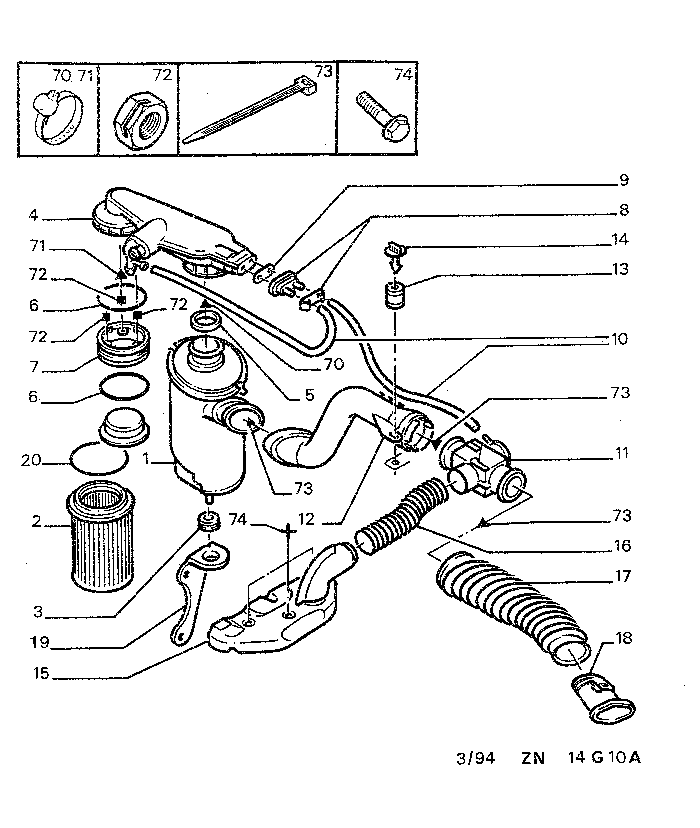

| GB | 405N 1 14G10A | AIR FILTER AIR HOSE AIR RESONATOR |
UP TO S 71191661
| 01 | 1420 F1 | 01 |
AIR FILTER
MANN TECAFILTRES |
 | |||
| 02 | 1444 85 | 01 |
FILTER ELEMENT
MANN TECAFILTRES |
| | |||
| 03 | 1446 23 | 01 | GROMMET |
| | |||
| 04 | 1424 L8 | 01 | CARB AIR HOSE |
| | |||
| 05 | 1424 H6 | 01 | HOSE SEAL |
| | |||
| 06 | 1424 L9 | 02 | RING-SEAL |
| | |||
| 07 | 1424 N0 | 01 | SPACER |
| | |||
| 08 | 1424 Z7 | 01 | VACUUM UNIT |
| | |||
| 09 | 1424 L0 | 01 | HOSE SEAL EP 2,5 |
| | |||
| 10 | 5953 06 | 01 | VACM UNIT UNION CL 3,5X8-5000 |
| | |||
| 11 | 1424 T8 | 01 | INTAK AIR MIXER |
| | |||
| 12 | 1425 W1 | 01 | FILTER AIR HOSE |
| | |||
| 13 | 1425 K3 | 01 | SPACER |
| | |||
| 14 | 1425 K2 | 01 | FIXING BUTTON |
| | |||
| 15 | 1425 P8 | 01 | AIR JACKET |
| | |||
| 16 | 1425 K5 | 01 | HOT AIR PIPE |
| | |||
| 17 | 1425 W8 | 01 | FILTER AIR HOSE |
| | |||
| 18 | 1425 K9 | 01 | AIR FITTING |
| | |||
| 19 | 1436 33 | 01 | FILTER BRACKET |
| | |||
| 20 | 1446 31 | 01 | FILT COVER SEAL |
| | |||
| 70 | 6981 63 | 01 |
METALLIC CLAMP DIAM 60-100 LARG 9 |
| RP 6981 46 | 01 | ||
| | |||
| 71 | 6981 48 | 01 | DIAM 100-125 LARG 14 |
| | |||
| 72 | 6935 86 | 03 | SELF LOCKG NUT 6X100-5,5-10 |
| | |||
| 73 | 6980 32 | 02 | STRAP L=427 LARG=8 |
| | |||
| 74 | 6925 60 | 03 | SCREW WITH BASE 6X100-11 |
