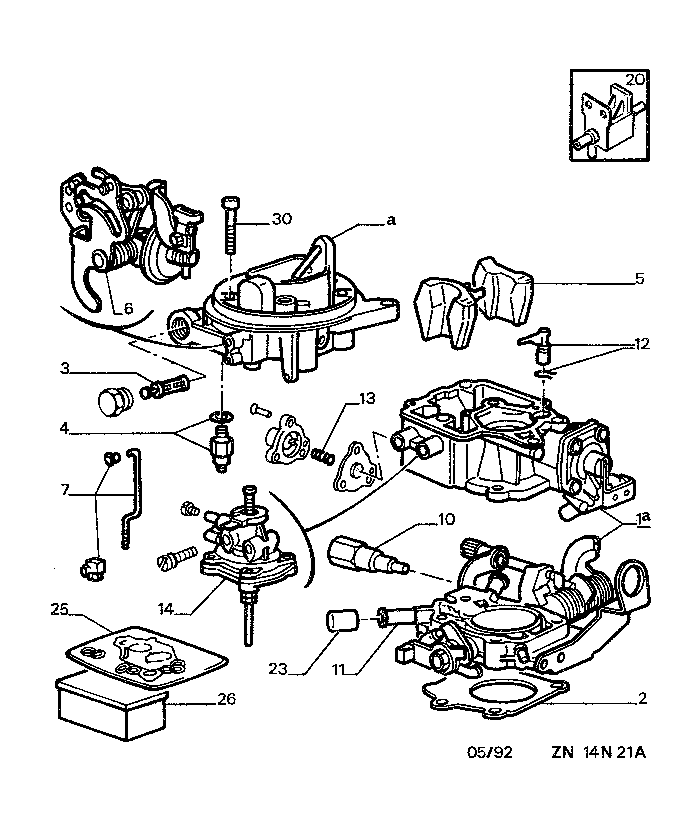

| GB | 405N 1 14N21A | CARBURETTOR DETAIL INJECTION BODY |
CARBURETTOR TU3-2 LOW COMP RATIO
| 01 | 1401 C1 | 01 |
CARBURETTOR
WEBER- *34 TLP 21-200 WEBER- 34 TLP 14/200 WEBER- 34 TLP 14/201 |
 | |||
| 02 | 1416 A5 | 01 | CARBURET GASKET |
| | |||
| 03 | 1403 C4 | 01 | PETROL FILTER |
| | |||
| 04 | 1433 B0 | 01 |
CARB NEEDL VALV
PARIS RHONE |
| | |||
| 05 | 1403 C8 | 01 |
CARBURETR FLOAT
PARIS RHONE |
| | |||
| 06 | 1406 E1 | 01 |
STARTING DEVICE
WEBER |
| | |||
| 07 | 1406 C8 | 01 | REPAIR KIT |
| | |||
| 10 | 1405 F6 | 01 |
PILOT CUT-OUT
WEBER |
| | |||
| 12 | 1409 C9 | 01 |
PUMP INJECTOR
WEBER- |
| | |||
| 13 | 1413 A8 | 01 | DIAPHRAG.SPRING |
| | |||
| 14 | 1408 A5 | 01 |
IDLE VACUUM UNT
- AIR CONDITIONING |
| | |||
| 20 | 1628 L9 | 01 |
ELECTRO VALVE
EATON - AIR CONDITIONING CONNECTOR BLUE |
| | |||
| 1621 60 | 01 | ||
| RP 1621 89 | 01 |
- AIR CONDITIONING CONNECTOR BLACK |
|
| | |||
| 23 | 1624 60 | 01 | PLUG 4,3X9,3-20 |
| | |||
| 25 | 1417 F3 | 01 | CARB GASKET KIT |
| | |||
| 26 | 1417 F2 | 01 |
CARB REPAIR KIT
PARIS RHONE |
| | |||
| 30 | 1416 E0 | 02 | WASHER-SCREW 6X100-120 |
